LCA indicator

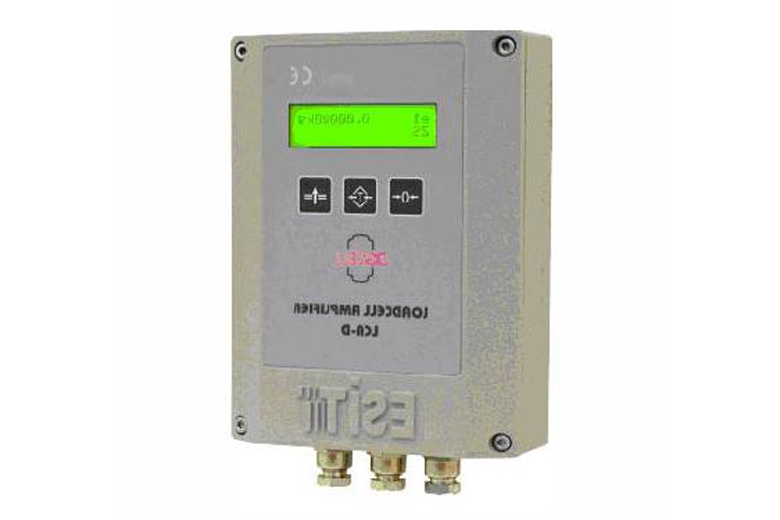

The LCA-D is a general-purpose weighing indicator and load cell amplifier designed for high-precision weight, force, and pressure measurements in industrial environments. It is suitable for applications such as tank weighing, silo monitoring, and process control systems.
Functionality: Designed for accurate weight display and measurement, often with advanced settings for customized use.
Display: Features a clear digital screen to showcase weight readings effectively.
Connectivity: Usually equipped with interfaces like RS232 or RS485 for integration with external devices or systems.
Durability: Constructed from robust materials to withstand demanding industrial environments.
Applications: Ideal for platform scales, industrial weighing setups, and monitoring systems requiring precise measurements.
Key Specifications
| Feature | Specification |
|---|---|
| Model Variants | LCA-D (with display and keypad), LCA-X (without display) |
| A/D Converter | 24-bit resolution |
| Display Resolution | 1/100,000 (optional 1/1,000,000) |
| Input Range | -1.60 V to +1.60 V |
| A/D Conversion Rate | 50 samples per second |
| Display | LCD, 2×16 characters |
| Maximum Range | 7-digit display (-9,999,999 to +9,999,999) |
| Load Cell Support | Connects up to 8 load cells |
| Communication Interfaces | RS-232C / RS-485 (selectable) |
| Power Supply | 12–24 V DC/AC |
| Protection Class | IP66 (dust-tight and protected against powerful water jets) |
| Housing | Aluminum cast housing suitable for dusty, humid, and corrosive environments |
| Calibration | Supports digital linearization (5 areas with 6 points) and temperature correction |
| Remote Monitoring | Enables remote monitoring of measurements via connected systems |
