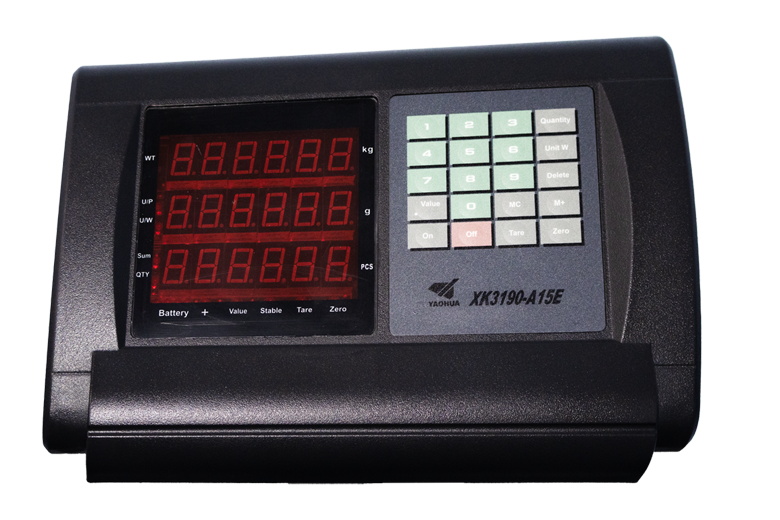

XK3190-A15 Weight Indicator
Weighing indicator XK3190-A15 with price-computing and counting function adopts fast speed, high precision ∑-Δ A/D conversion technology and advanced software technology, widely applied in electronic platform scale,mechanic -electronic scale and so on alike static weighing system equipped with 1~6 load cell.
| High precision A/D conversion with max. external counts 30000 and min. counting precision 1/10000 |
| Call and display inner code to replace weight observing and analysis tolerance |
| Able to set up zero-tracking range, zero(auto/manual) range and zero speed |
| Accumulation result display |
| Selection of price-computing function or counting function |
| Unit weight got by direct inputting or quantity-weight calculation, counting precision auto correction |
| XK3190-A15 (LCD display) with selectable backlight mode |
| XK3190-A15E(LED display) with selectable power-saving mode |
| AC/DC power supply, with built-in rechargeable 6V/4AH battery |
| Indicating for battery volume or status |
| Alarm for low battery and auto power off at low battery |
| Optional of RS232 interface with selectable baud rate |
| High-Low alarm (on/off output optional) |
| A/D conversion method: ∑-Δ |
| A/D conversion speed: 10~20 times/sec. |
| Max. A/D conversion bits: 24 |
| Input signal range: -2mV~13mV |
| Input sensitivity: ≥1 μV/e |
| Load cell excitation: DC 5V |
| Max. connection number of load cell: 6 at 350 ohm |
| Load cell connection mode: 4 wire |
| Verified counts: 3000 |
| Max. external counts: 30000 |
| Max. internal resolution: 600000 |
| Division: 1/2/5/10/20/50/100 optional |
| Display(XK3190-A15): 21 bits LCD, 10 status indications |
| Display(XK3190-A15E): 18 bits LED, 10 status indications |
| Display range: -999900~999900(d=100) |
| Optional: RS232C serial communication interface, with selectable baud rate by continuous sending method |
| Baud rate:600/1200/2400/4800/9600 |
| Transmission distance: RS232C≤30 meters |
| Optional: Fixed-value one OC output≤60mA |
| Power supply: AC 187~242V,49~51Hz; DC built-in rechargeable 6V/4AH battery |
