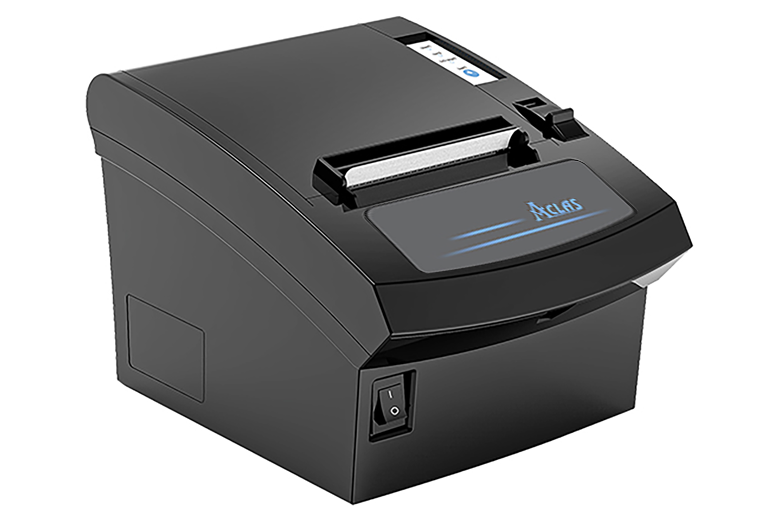

Aclas PP7X Thermal Printer

High Reliable

Extremely light in weight but high reliable in performance;

Auto-cutter

80mm printer with auto-cutter (1,500,000 times cutting);

Printing Speed

Up to 250mm/s printing speed;

1D & 2D Barcode

Support 1D & 2D barcode;

ESC/POS Command

Compatible with ESC/POS command; OPOS driver available;

This combination does not exist.

Get a Quote

Model: pp7x Printer

POWER SUPPLY: DC 24V/1A

COMMUNICATION: Ethernet, parallel port,

Click to Read Terms and Conditions
Shipping: Within 24hrs for Nairobi orders, 1-5 days outside Nairobi.

Exclusive Features

Rapid processing of cutter stuck: in case of accidental cutter stuck, only press the handle 6-8 times to remove the trouble.
With agile black mark detector: locate printing position quickly, support detection in left and right direction. Also could connect with operator and customer display (optional) and function keyboard (optional) to work as a receipt printer and fiscal printer.
With optional and replaceable interface modules: RS232+U port, *BT+WIFI+U port, parallel port, Ethernet+U port and other interfaces, which can be freely selected according to system of the user.
Optional model with customer display (PP7MXC) is available.

Excellent functions

The printing speed is fast, up to 250mm/s (PP7M31HX); customers can also choose the machine of 150mm/s at a low price(PP7M31NX) according to their needs.
The unique easy paper loading structure makes the paper loading simple and easy.
The cutter life can reach 1 million times.
It supports two paper widths of 80mm and 58mm.
With wall hanging function.

Specifications

Model name	PP7M2X	PP7M31NX	PP7M31HX
Printing Speed	150mm/s	150mm/s	250mm/s
Power Supply	DC12V/2A	DC24V/2A
Printing Method	Thermal printing
Resolution	203dpi
Paper Specification	Paper type	Thermal paper
Paper Width	57.5±0.5mm	79.5mm±0.5mm
Paper Roll Diameter	80.0mm
Paper Supply Method	Easy paper loading
Printing character	Character Set	ANK character set, Chinese GB2312, traditional Chinese BIG5, 12×24 dot, 24×24 dot
Number of columns	48 columns
Barcodes Type	UPC-A、UPC-E、Code 128、EAN 128、Jan8 Jan13(EAN)、Interleaved 2 of 45、Codabar
Receiving buffer	16KB
Flash Memory	16M bit
Optional function	Fiscal (with operator and customer display), customer display, operator display,black mark detector, GPRS module
Communication ports	Ethernet, parallel port, RS232, USB
Cash drawer drive	1 port (compatible with EPSON)
Print head life	100km	50km	150km
Cutter life	1000,000 times
Cash drawer control	DC 24V/1A
Working temperature	0℃ ~ 40℃
Working humidity	5%R.H.~85%R.H.
Drive	Win8、WinME、Win2000、WinNT、WinXP、Compatible with EPSON
Printing command	Compatible with ESC/POS commands
Dimensions	without customer display:145X194X136mm with customer display:176X234X208mm
