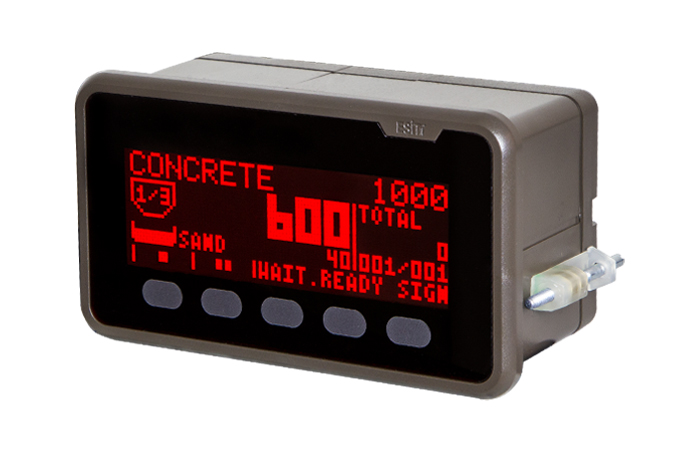

Esit ECI-BA indicator
The Esit ECI-BA is a high-performance digital weighing controller designed for advanced batching and recipe-based filling operations. It offers enhanced functionality, precision, and ease of use, making it suitable for industrial applications requiring multi-silo management and complex recipe execution.
Functionality: Supports recipe-based weighing with memory for up to 96 recipes and controls up to 16 silos.
Display: Features a bright 4.5-inch graphics display with capacitive touch buttons for ease of use.
Technology: Includes Esit's gResolver filtering software to minimize vibration effects for precise measurements.
Connectivity: Offers USB, RS232, and optional communication cards like Modbus TCP, Profinet IO, and Ethernet/IP.
Calibration: Equipped with a "Calibration Doctor" feature for easy and accurate calibration.
Applications: Ideal for filling systems, industrial automation, and process control.
Industries
The ECI-BA is ideal for industries such as:
- Food and beverage processing
- Chemical manufacturing
- Pharmaceutical production
- Agricultural feed batching
- Any application requiring precise multi-ingredient batching and filling
| Feature | Details |
|---|---|
| Display | Bright graphic screen with recipe process visualization |
| Silo Support | Standard: 4 silos; Optional: up to 16 silos |
| Recipe Memory | Stores up to 96 different recipes |
| Filling Modes | Fast-slow filling for up to 16 silos |
| Relay Outputs | Built-in: 2 × 4-relay cards; Expandable via optional relay cards |
| Calibration | 'Calibration Doctor' program for step-by-step guidance; supports weight, mV, factory, coefficient, and digital calibration methods |
| Data Output Rate | Up to 800 Hz |
| USB Functions | Reporting, firmware updates, backup, and recipe loading |
| Connectivity | RS232, RS485, USB; optional Ethernet/IP, Modbus TCP, Profibus, Profinet |
| Menu System | Adaptive, indexed, multi-language support |
| Vibration Filtering | Esit gResolver multi-frequency filtering technology |
| Auto-Shot Feature | Automatic discharge control |
| Recipe Tolerance & Compensation | Supports tolerance settings and compensation adjustments |
| Calibration Data Portability | Allows transferring calibration data between devices |
| Enclosure | IP65-rated front panel; suitable for industrial environments |
