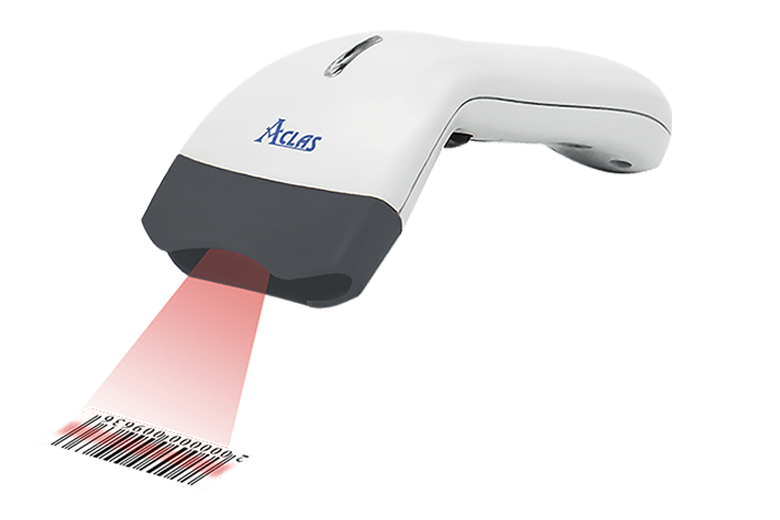

Aclas BR8X Barcode Scanner
Product Overview:
The BR8X Barcode Scanner is a next-generation CCD-based 1D barcode reader engineered for ultra-precision scanning in Kenyan retail, jewelry, and wholesale sectors. Its 2mil ultra-high resolution surpasses traditional models, allowing it to effortlessly decode extremely tiny or high-density barcodes—including those used in jewelry and electronic component retailing.
Available in both wired (BR8MUX) and wireless (BR8MTX) variants, the BR8X offers versatile connectivity and long-lasting power. The wireless model supports up to 13,000 scans per charge with a power-saving standby of six months. Whether you’re scanning misted barcodes on refrigerated goods, phone screens, or retail products, this device delivers sharp accuracy and unmatched durability.
Key Features:
2mil Ultra-High Resolution – Perfect for tiny and dense barcodes like those found in jewelry and electronics.
CCD Scan Head – Easily scans barcodes from screens or through moisture (e.g., misted fridge products).
Wired & Wireless Options – Choose between USB/RS232 or Bluetooth/2.4G models based on your POS setup.
Long Battery Life – Wireless BR8MTX performs up to 13,000 scans on a full charge; 6μA standby current.
Pre-lighting and close targeting – Accurately targets individual barcodes in cluttered environments.
Rugged & Durable – Withstands 20 drops from 1.5 meters and passes 1,000,000+ cable bends.
Ergonomic Design – Lightweight and comfortable for extended use, with a modern, aesthetic appeal.
Compatible with All 1D Barcodes – Includes EAN, UPC, Code 128, GS1 DataBar, China Postal Code, and more.
Plug and Play – Easily integrates into existing POS and inventory systems.
International Quality Assurance – Exported to Japan for over a decade with CE, FCC, VCCI, and RoHS compliance.
Who Needs the BR8X Barcode Scanner?
Jewelry shops scanning tiny barcodes in Nairobi, Mombasa, Eldoret, and Kisumu.
Convenience stores and wholesalers needing fast and ergonomic scanning tools.
Cold storage operators and supermarkets dealing with wet/misted product labels.
POS system integrators seeking reliable wired or wireless scanners.
Mobile retailers and agents looking for compact Bluetooth-enabled scanners.
Warehouses and retail chains needing high-speed decoding across a variety of 1D barcodes.
BR8X Barcode Image Scanner with Ultra-High Resolution Design and CCD Scanner Head, can scan tiny barcode.
Prominent Feature
- Ultra-high resolution, the BR8X Barcode Image Scanner is capable of scanning 2mil ultra-tiny barcode with high density (3 mil or above for other manufacturers).
- Equipped with pre-lighting function, easy to aim at barcode (When scanner senses light changes or when handheld capacitance changes are triggered), it can easily aim among close barcodes.
- Wireless 2.4G model (BR8 MTX) of super power-saving design is able to scan up to 13,000 times when it’s fully charged (The scanner consumes 130mA while scanning). Standby current only comes to 6μA, the BR8X can standby for half a year.
- Exported to Japan for a decade, high precision and top quality. High sensitivity, quick to identify in long distance.
EXCELLENT FUNCTIONS
- Decode all barcodes: support international standard barcode and GS1 code, meet the requirement of scanning on most occasions.
- Image optical scanning head, available to scan barcode on the phone, especially for the barcode with water mist of the items in the fridge.
- Cable bending intensity: minimum 1,000,000 times
- User-friendly design: beautiful and smooth appearance plus comfortable and natural hand feeling, exactly accord with ergonomic design.
- Easy and quick to operate for wholesale store and convenience store.
Specifications
| OPERATIONAL | ||
| Model | BR8MUX(Wired) | BR8MTX(Wireless) |
| Light Source | Red LED(625nm) | |
| Optical System | 2500 Pixel Linear Sensor | |
| Scan Precision | 0.05mm (2mil) | 0.07mm (3mil) |
| Scan Width | 62mm(@20mm)；260mm(@260mm) | |
| Scan Pattern | Manual Trigger | |
| Scan Speed | 200 times/s | |
| Decoding Capability | EAN-13, EAN-8, Code39, Code32, CIP39, Coda Bar(CLSI), UPC-A, UPC-E(Add on 2 of 5), MSI/Plessey(UK Plessey), Code 128(EAN128),Code 93, Code 11, Interleaved 2 of 5, ITF 14, Industrial 2 of 5, IATA, Matrix 2 of 5, Telepen, China Postal Code, GS1 DataBar(RSS), Laetus Phamacode | |
| PHYSICAL | ||
| Material | ABS+TPR | |
| Color | Black/White | |
| Weight | 90g (Without cable),180g(With cable) | 100g(Scanner) , 395g(Charging base with cable) |
| Dimension | 172mm (Length) *72mm (Width)*58mm (Height) | 148.5mm (Length) *100mm (Width)*188.5mm (Height) |
| Indicator | Blue LED &Beeper | Yellow &Green Light &Buzzer |
| System Interface | USB/RS232/ PS2 | USB / Bluetooth / 2.4G |
| POWER | ||
| Operating Voltage | 5V±5% | |
| Operating Current | 65mA | 77mA |
| Standby Current | 50mA | 44mA |
| Sleeping current | / | 6μA |
| Air Discharge | 15KV | |
| ENVIRONMENTAL | ||
| Drop Durability | Withstand 20 drops at 1.5m to concrete | |
| Dustproof and waterproof | lp30 | |
| Working Temperature | 0℃~40℃(Customization available for harsher | |
| Store Temperature | -20℃~60℃ | |
| Relative Humidity | 5%~95% (Non-condensing) | |
| REGULATORY | ||
| EMC Safety | CE,FCC/Class B, VCCI/Class B | |
| ROHS/WEEE | ROHS Directive 2011/65/EU, WEEE |
