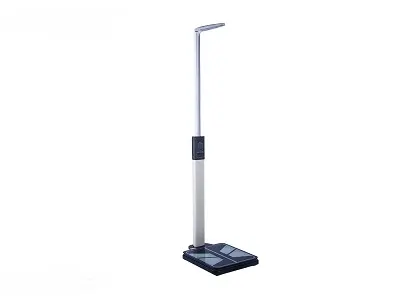

BYH09 Ultrasonic Electronic BMI Body Fat Calories Height Weight Multifunctional Measuring BMI Scale
The WANT BYH09 Ultrasonic Electronic BMI Scale is a comprehensive health monitoring device designed for precise measurement of weight, height, and body composition metrics. With a capacity of up to 200kg and a height range of 100–195cm, it provides accurate readings for BMI, body fat, and overall body shape assessment. The scale features an easy-to-read LCD display and voice function for user convenience.
Key Features
- Comprehensive Body Analysis: Measures weight, height, BMI, body fat, and provides body shape judgment.
- High Capacity: Supports up to 200kg with 50g division value.
- Ultrasonic Height Measurement: Range from 100 to 195cm with 0.5cm graduation.
- User-Friendly Display: High-definition LCD screen with white characters on black background; screen size 68x44mm.
- Voice Function: Audible readouts with an option to switch off.
- Power Efficient: Operates on DC 5V 500mA power supply.
- Data Output: Equipped with RS232 serial output function for data transfer.
Who Needs the WANT BYH09 Scale?
- Medical Clinics: For patient health assessments.
- Fitness Centers: To monitor client progress.
- Educational Institutions: For student health evaluations.
- Corporate Wellness Programs: Employee health tracking.
- Home Users: Personal health monitoring.
Documents
Product Detail
Main functions | weight, height, fat, BMI, body shape judgment |
Weight measurement range | 3~200 kg; division value50 g, error ± 300 g, unit KG, lb |
Height measurement range | 100-195CM, graduation value 0.5CM, error ±0.5CM, unit CM, FT |
Display | high-definition LCD display with white characters on black background, screen size68*44MM |
Mode selection | There are two modes to choose fromweight/height, weight/height/fat, and the default height/weight mode is powered on. |
Voice function | voice read data, with voice switch |
Weight mode | display height, weight, BMI, and report data and body shape by voice |
Weight & Fat Mode | Display height, weight, fat, and report data and body shape by voice |
Output | with RS232 serial output function |
Power supply | DC 5V500mA power supply |
Frequently asked questions
BYH09 Ultrasonic BMI Body Composition Analyzer Scale
Yes, it calculates BMI based on the measured height and weight.
Yes, it provides audible readouts with an option to mute.
It operates on a DC 5V 500mA power supply.
