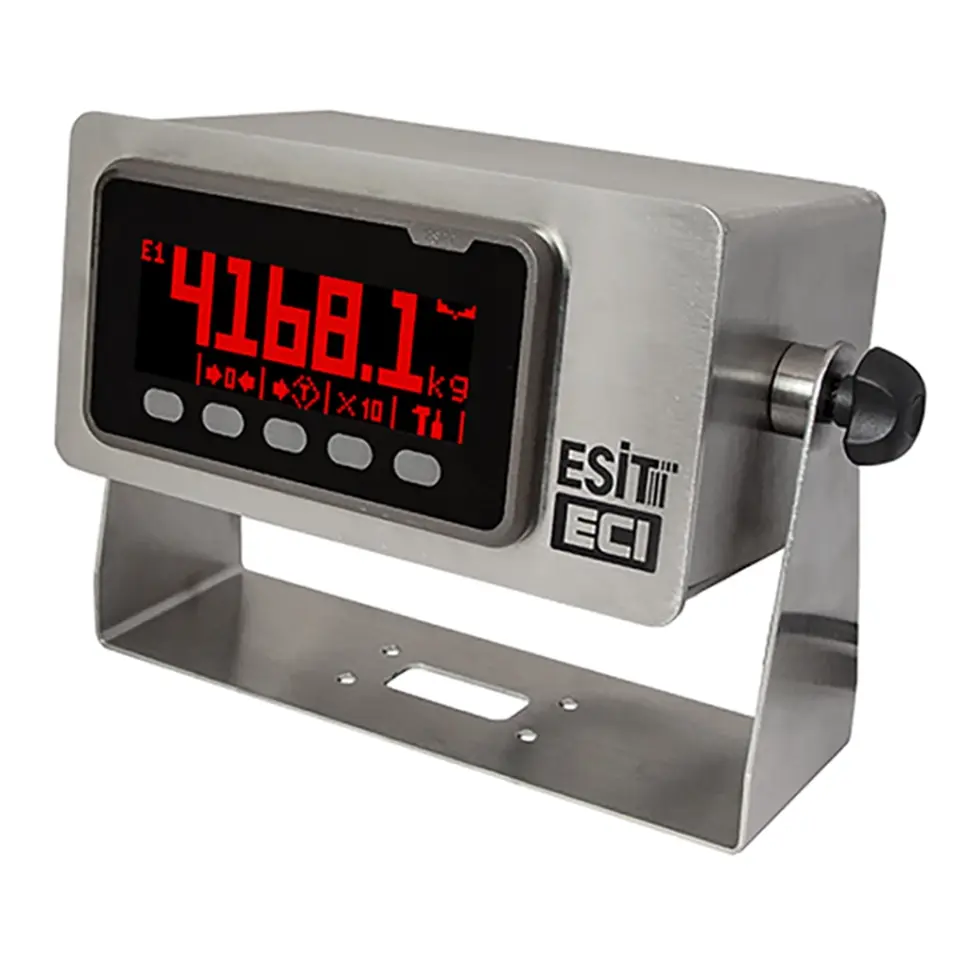

ECI Digital ( modbus ) Indicator

Description;

New ESİT ECI Digital Weighing Indicator is designed for weighing with digital load cells and to be used in vehicle scales. There are two different models of ECI Digital: designed for Modbus or Canbus output digital load cells. Although ESİT ECI is designed for panel use, there are optional casings for colon or desktop use as well. ESİT ECI indicates the weighing process clearly, via its various warnings and graphics on IP65 enclosure-rated front panel touch screen and new bright graphic screen. With a standard mounted USB port; ESİT ECI offers free firmware update, backup and reporting functions.

Features;

• Weighing program with digital load cells
• Communication with load cells via Modbus or Canbus protocols
• İndicator, platform scale or vehicle scale modes
• Angle correction function when used with ESİT CAD series digital load cells
• Faulty load cell warning
• Weighing program with digital load cells
• Communication with load cells via Modbus or Canbus protocols
• İndicator, platform scale or vehicle scale modes
• Angle correction function when used with ESİT CAD series digital load cells
• Adaptive, indexed menu system
• Easy connection with connectors (Solder-free)
• 1600 Hz measurement / 800 Hz data output rate
• USB reporting / update / backup / calibration backup
• Possibility of moving calibration data to other devices
• Multi-language option
• Esit gResolver multi-frequency vibration filtering technology
• Easy calibration (mV, factory, coefficient, digital )
• Intelligent plug and play type option cards and modular expansion
• Galvanic isolated communication docks
• Internal thermometer
• Service menu (self diagnostic)
• Printer support
• USB, RS232 serial communication and external display output
