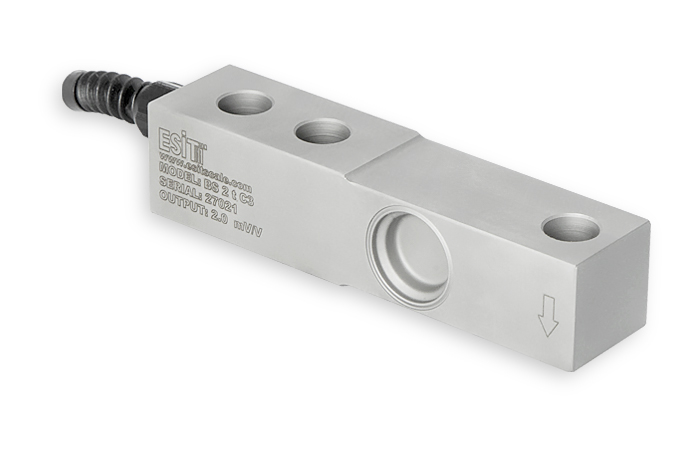

Esit loadcell BS-200kg

Name: Esit loadcell BS-200kg
Availability: InStock

Type: Strain gauge-based load cell.

Capacity: Rated for weights up to 200 kg.

Material: Typically made from high-strength materials such as stainless steel or alloy steel for durability and long-term use.

Accuracy: Provides reliable and precise measurements, suitable for both industrial and commercial settings.

Applications: Commonly used in smaller platform scales, industrial weighing systems, and machinery requiring medium load capacity.

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

More Information

This content will be shared across all product pages.

Feature	Specification
Model	BS-200kg
Capacity	200 kg
Minimum Division	20 g
Maximum Overload Capacity	300 kg (150% of rated capacity)
Ultimate Load	600 kg (300% of rated capacity)
Accuracy Class	OIML R60 C1 (1000 divisions) and C3 (3000 divisions)
Combined Error	≤ ±0.05% (C1), ≤ ±0.02% (C3)
Creep (30 min)	≤ ±0.00625% Emax
Rated Output	2 mV/V ±0.1%
Zero Balance	≤ ±2% of rated output
Input Resistance	351 Ω ±3 Ω
Output Resistance	350 Ω ±3 Ω
Insulation Resistance	≥ 500 MΩ
Excitation Voltage	Up to 15 V DC
Compensated Temperature Range	-10°C to +40°C
Operating Temperature Range	-40°C to +80°C
Material	Stainless Steel
Protection Class	IP68 (hermetically sealed)
Cable Length	5 meters ±3%
Cable Diameter	5 mm
Weight	0.8 kg
Package Dimensions / Weight	10 × 27 × 6 cm / 1.0 kg
