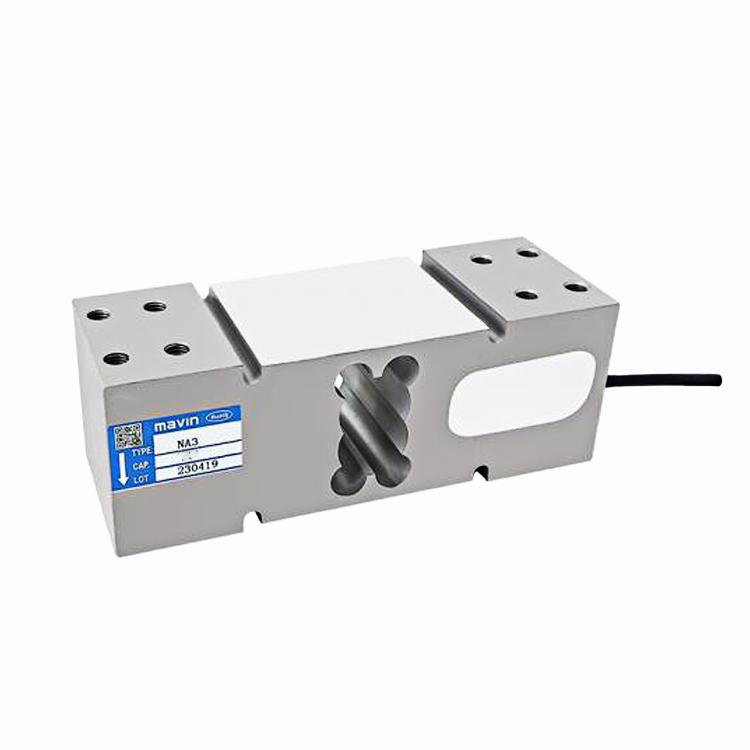

Marvin loadcell NA3- 300kg

Name: Marvin loadcell NA3- 300kg
Availability: InStock

Type: Strain gauge-based load cell.

Capacity: Rated for weights up to 300 kg.

Material: Often made of durable materials such as stainless steel or alloy steel to ensure reliability.

Accuracy: Provides high precision for applications requiring consistent weight measurement.

Applications: Commonly used in smaller platform scales, industrial weighing systems, and specific setups where 300 kg is the maximum load.

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Request for a Quotation

More Information

Feature	Specification
Rated Capacity	300 kg
Rated Output	2.0 mV/V ±5%
Zero Balance	±0.0200 mV/V
Accuracy Class	OIML C3 (up to 3000 divisions)
Non-linearity	≤0.017% of rated output
Hysteresis	≤0.017% of rated output
Repeatability	≤0.017% of rated output
Creep (30 minutes)	≤0.017% of rated output
Temperature Effect on Output	0.0015% of rated output per °C
Temperature Effect on Zero	0.002% of rated output per °C
Input Impedance	410 Ω ±15 Ω
Output Impedance	350 Ω ±5 Ω
Insulation Resistance	≥5000 MΩ at 50 VDC
Recommended Excitation Voltage	5–12 VDC
Maximum Excitation Voltage	15 VDC
Safe Overload	150% of rated capacity
Ultimate Overload	200% of rated capacity
Operating Temperature Range	-20°C to +60°C
Material	Aluminum alloy
Protection Class	IP66/IP67
Cable	5 mm diameter, 2 m length
Recommended Platform Size	Up to 600 × 800 mm
Dimensions	174 × 60 × 64 mm
