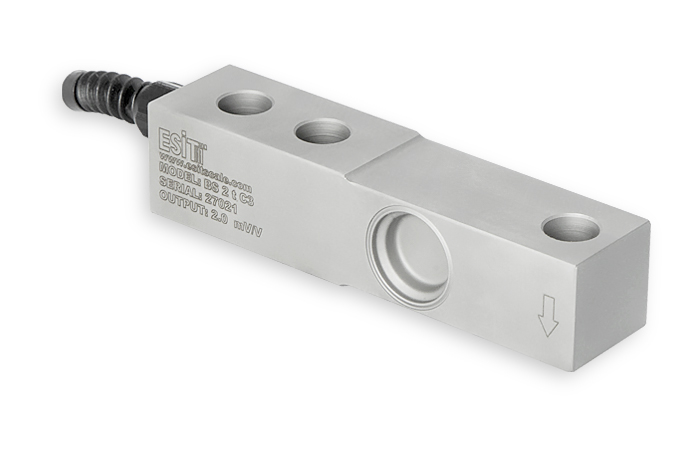

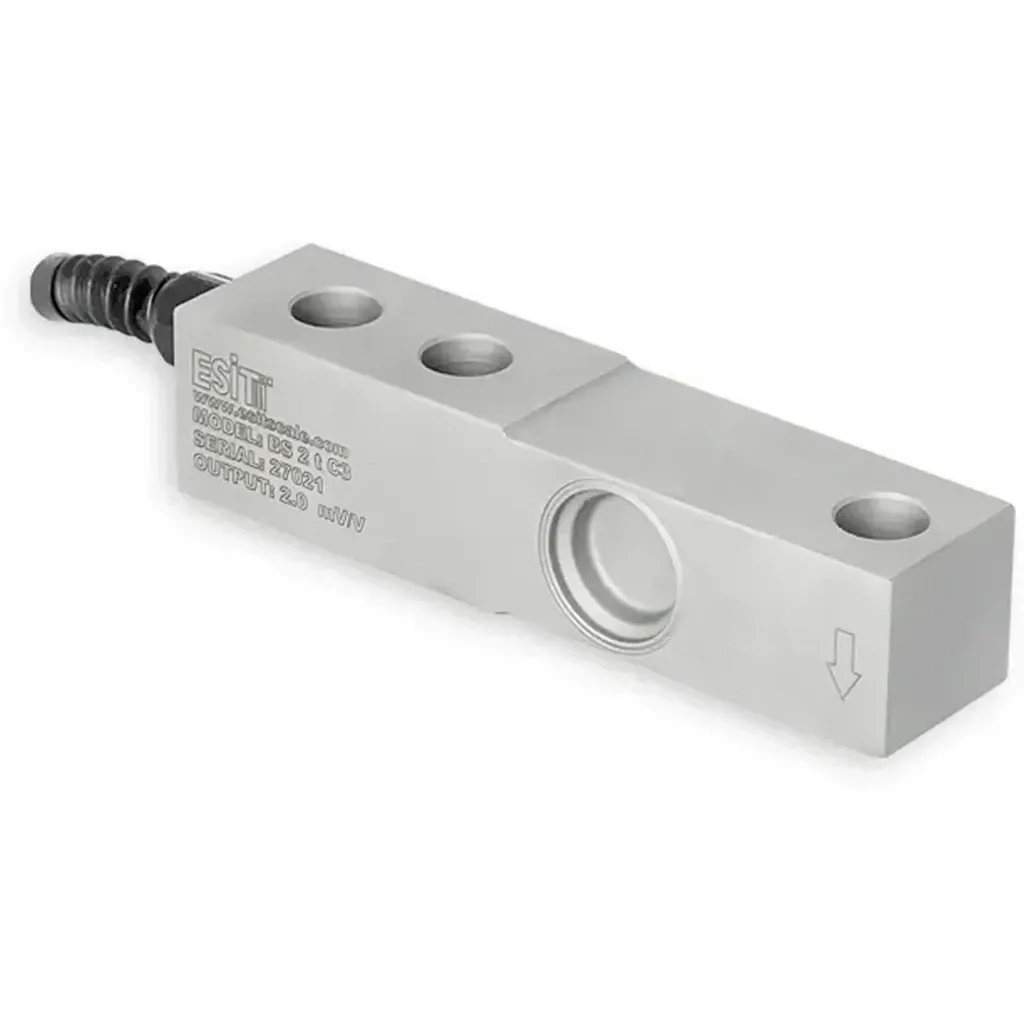

Esit loadcell BS- 2 ton
The Esit BS-200kg is a stainless steel shear beam load cell designed for precision weighing in industrial environments. Its robust construction and IP68 protection make it suitable for applications such as platform scales, tank weighing systems, and process weighing.
Type: Strain gauge-based load cell.
Capacity: Rated for weights up to 200 kg.
Material: Typically made from high-strength materials such as stainless steel or alloy steel for durability and long-term use.
Accuracy: Provides reliable and precise measurements, suitable for both industrial and commercial settings.
Applications: Commonly used in smaller platform scales, industrial weighing systems, and machinery requiring medium load capacity.
Key Specifications
| Feature | Specification |
|---|---|
| Model | BS-200kg |
| Capacity | 200 kg |
| Minimum Division | 20 g |
| Maximum Overload Capacity | 300 kg (150% of rated capacity) |
| Ultimate Load | 600 kg (300% of rated capacity) |
| Accuracy Class | OIML R60 C1 (1000 divisions) and C3 (3000 divisions) |
| Combined Error | ≤ ±0.05% (C1), ≤ ±0.02% (C3) |
| Creep (30 min) | ≤ ±0.00625% Emax |
| Rated Output | 2 mV/V ±0.1% |
| Zero Balance | ≤ ±2% of rated output |
| Input Resistance | 351 Ω ±3 Ω |
| Output Resistance | 350 Ω ±3 Ω |
| Insulation Resistance | ≥ 500 MΩ |
| Excitation Voltage | Up to 15 V DC |
| Compensated Temperature Range | -10°C to +40°C |
| Operating Temperature Range | -40°C to +80°C |
| Material | Stainless Steel |
| Protection Class | IP68 (hermetically sealed) |
| Cable Length | 5 meters ±3% |
| Cable Diameter | 5 mm |
| Weight | 0.8 kg |
| Package Dimensions / Weight | 10 × 27 × 6 cm / 1.0 kg |
