Specification | Details |
|---|---|
Model / Series | Compact / Standard-Heavy Duty / Extended Heavy Duty |
Capacity (Compact) | 40 T |
Capacity (Standard/Heavy Duty) | 60 T or 80 T |
Capacity (Extended Heavy Duty) | 100 T |
Platform Size (Compact) | 12 m x 3 m |
Platform Size (Standard/Heavy Duty) | 18 m x 3 m |
Platform Size (Extended Heavy Duty) | 22 m x 3 m |
Load Cells (Compact) | 6 pcs |
Load Cells (Standard/Heavy Duty) | 8 pcs |
Load Cells (Extended Heavy Duty) | 10 pcs |
Load Cell Model | ZEMIC/KELI |
Load Cell Capacity (each) | 30 Tonnes |
Load Cell Accuracy Class | C3 |
Load Cell Safe Overload | 150% F.S |
Load Cell Ultimate Overload | 300% F.S |
Load Cell Protection Class | IP68 (hermetically sealed) |
Load Cell Material | Alloy steel |
Load Cell Working Temperature | -35°C to +70°C |
Platform Structure | Standard U-shape beam, 300 mm height, 6 pcs U-beam |
Platform Steel Grade | Q235B carbon steel |
Platform Top Plate | 8 mm checker plate |
Painting | Acrylic Polyurethane, anti-rust/anti-corrosion, shot blasted (steel shot), airless spray, automatic painting line, Carpoly paint |
Shot Blasting Standard | SA2.5 |
Installation Options | Under the ground (pit-mounted) or above the ground (surface-mounted) |
Weight Indicator Model | KELI D2008H |
Indicator Operating Temperature | 0°C to 40°C |
Indicator Relative Humidity | ≤85% RH |
Indicator Power Supply | 220V, 50Hz |
Indicator Transmission Mode | RS485 (digital load cell) |
Indicator Baud Rate | 9600 / 19200 |
Indicator Data Storage | 1000 group weighing records |
Indicator Display | 7-bit, 0.8-inch LED digital tube |
Indicator Functions | Record storage/check/delete, power-off protection, sound alert on overweight |
Printer Model | LX350+ |
Printer Form Capacity | 5-part forms (1 original + 4 copies) |
Printer Paper Paths | Top, bottom and rear (easy access) |
Junction Box | Stainless steel, 8 ways, resistance protection device, waterproof seal joints |
Management Software | SPWin Weighbridge Management Software |
Software Core Functions | Gross/tare/net capture, transaction history, ticket printing, flexible reports, operator/user controls, standalone operation, data export |
Software Automation Options | RFID/card/QR/barcode ID, vehicle photo/CCTV, traffic light & boom-barrier control, driver self-service kiosk, remote display/message panel, network/multi-terminal operation, web service/ERP/SAP integration |

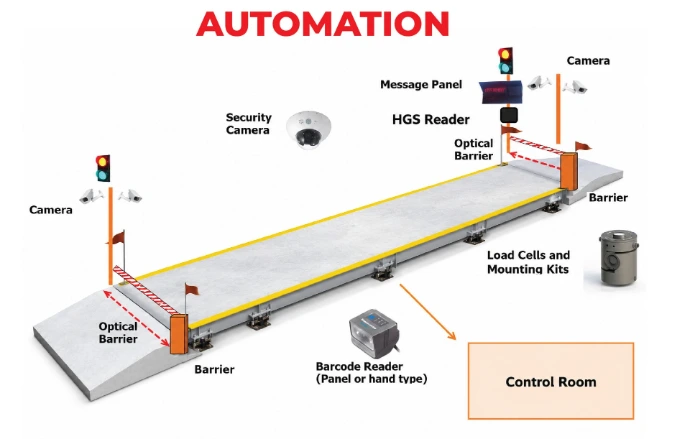

Automation Hardware (diagram) | Security camera, entry/exit cameras, message panel, HGS reader, optical barriers, boom barriers, barcode reader, load cells and mounting kits, control room |
Certifications / Standards Stated | Not specified in the datasheet (only internal references: load cell accuracy class C3; shot-blasting standard SA2.5) |

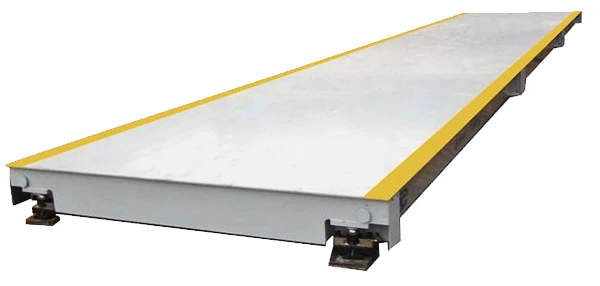

2.1 Physical Construction — Platform

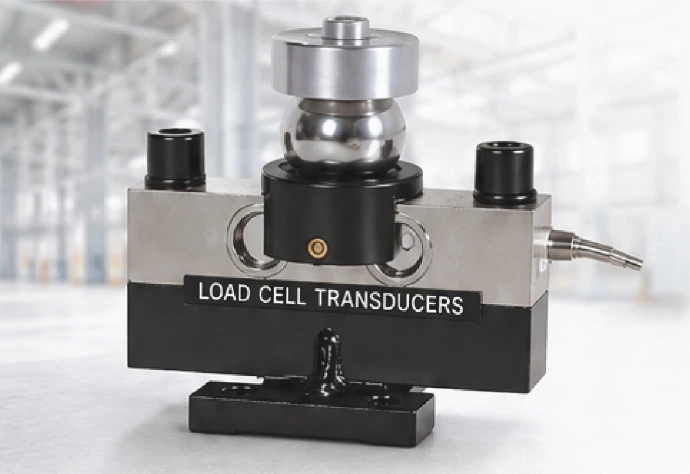

2.2 Load Cells

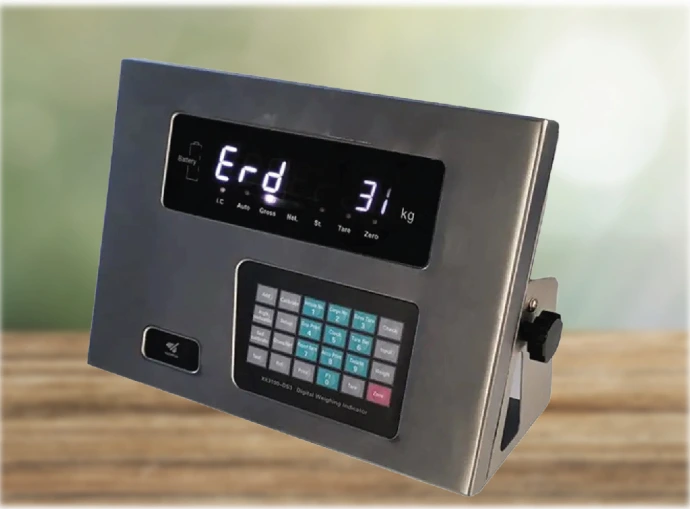

2.3 Weight Indicator
2.4 Automation Options
Any of the three platform sizes can be supplied as a conventional operator-controlled weighbridge, or expanded into a semi-automated or fully unattended system, using the following documented options:
Boom barriers and red/green traffic lights for controlled vehicle movement
RFID cards/tags, QR codes, barcodes or card readers for automatic vehicle/order identification
Driver self-service kiosk for unmanned or semi-unmanned weighing
CCTV and vehicle photo capture for transaction evidence and security
Remote weight display and message panel for driver guidance
ERP/SAP/API integration for automatic exchange of order, vehicle, material and weighing data
