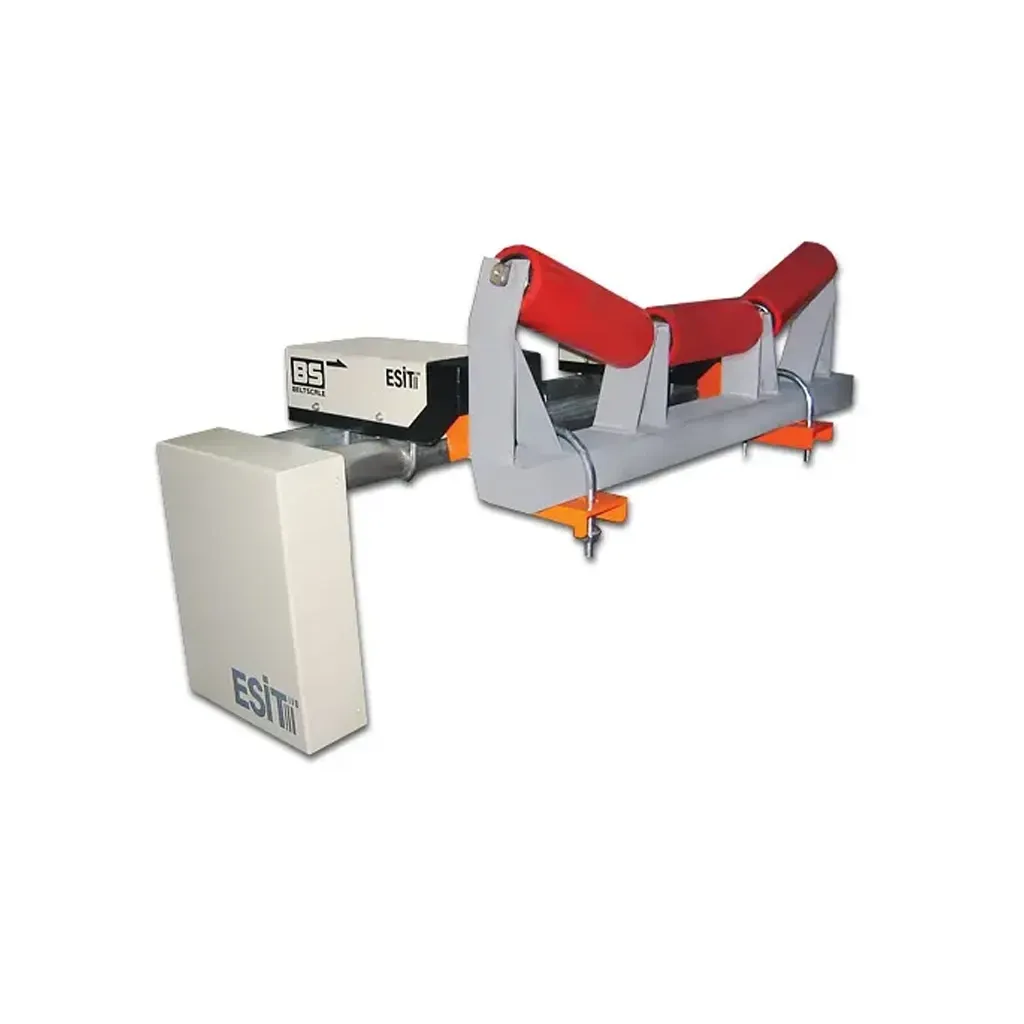

BS Belt Scale 1000-2000-6000 t/h

The BS Belt Scale is a high-accuracy conveyor belt weighing system engineered to weigh bulk materials during the conveying process. Whether you're moving mining ore, cement, or petrochemical materials, this system delivers precision and control with flow capacities of 1000, 2000, or 6000 tons per hour.

Thanks to its advanced electronic construction and intelligent control terminal, the BS Belt Scale measures flow rates based on belt speed and material load. Its robust, IP68-rated load cells and IP66-rated indicator ensure reliable operation in the harshest environments, from dusty mining sites to cement and chemical plants.

Certified according to the 2014/32 AB Directive, the BS Belt Scale guarantees traceable and accurate flow measurement compliant with international standards.

Explanation;

Electronic conveyor belt scale system enables the weighing of bulk materials carried by conveyor belts during the conveying process. The flow amount (capacity) is proportional to the speed and the material on the belt.   Conveyor Belt Unit With Idler(s); They are designed to fit every kind of conveyor belts used in the industry and located in place of one or a group of idlers where the belt moves on. The unit is a steel construction which realizes the weight of the bulk material on the belt by means of load cells. Depending on the single-idler group construction (SIB) with two load cells or multi-idler group construction (MIB) with 4 load cells are used. The protection is IP68 class.MIB construction is never granding a better accuracy then SIB contruction regarding to their working principle which is approved by tests in ESIT Labaroties. The load cells have an IP68 class protection while the indicator has IP66 grade protection.   Control Terminal; The measured value is displayed digitally by the microprocessor based model LCA control device. Daily, statistical data can be prepared and printed if LCA terminal is connected to DLMS software.

It is certified according to 2014/32 AB Directive

Options;

• EtherNet / IP Communication Card
• Modbus TCP Communication Card
• Profibus Communication Card (DP slave)
• Profinet IO Communication Card
• RS232 & RS485/RS422 Serial Communication Card (Modbus)

Industries Served:

• Mining – Monitor ore flow accurately for processing and logistics.

• Cement & Construction – Improve material efficiency in cement batching and transport.

• Chemistry & Petrochemistry – Track petrochemical flows in real-time with industrial accuracy.
