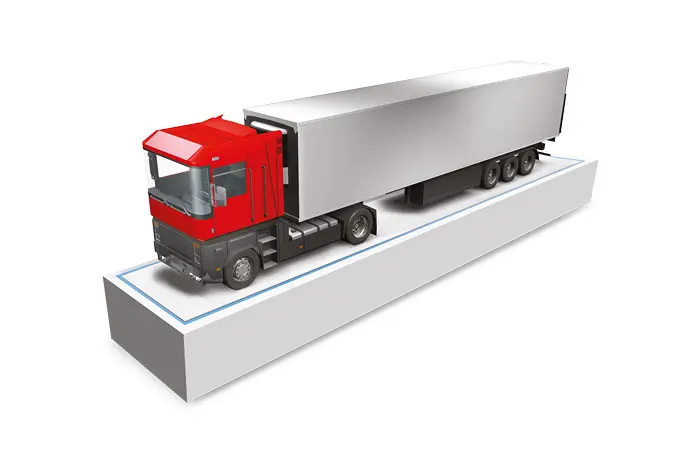

CB Concrete Weighbridge 100t
Product Overview
ESİT CB weighbridges are built of reinforced concrete. Although the construction work is a little laborious, the savings and the superior features it provides make it worth the effort. With its reinforced concrete construction, ESİT's CB offers considerable cost savings as compared to steel weighbridges.
Therefore, CB is an ideal weighing solution where the cost of steel weighbridges, as well as their shipment, exceeds the cost of construction works.

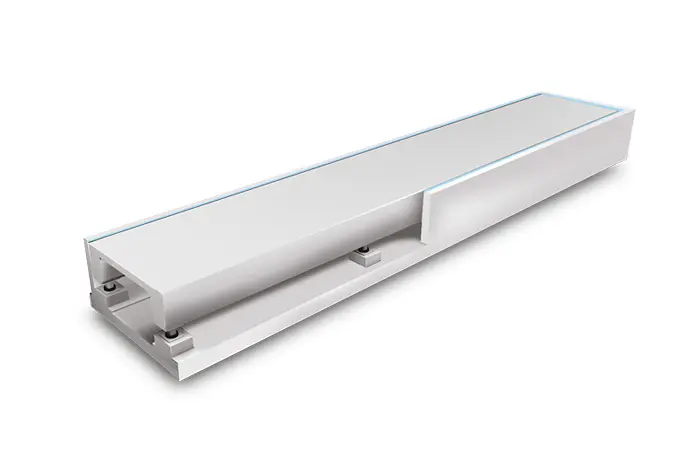

Designed to offer an easy mounting process, ESİT CB weighbridge is built with a scale pit. Once formworks and iron reinforcement are done, they are filled with concrete. Stainless, non-decay and maintenance-free Esit CS concrete weighbridges easily adjust to the weighing environment and are capable of withstanding heavy conditions. Since it is fully covered on top, it does not let in any dust, debris or mud.
Features;
- Rubber pads
- Multiple load cells
- Low profile
- Steel cable housings
- Lightning protection
- Assigning incremental sequence numbers to every weighing ticket
- Memory capacity to store 100,000 weighing operations
- Capability to recognize vehicles of fixed tare values 10 user-definable ticket data fields
- Detailed reporting between given dates
- Ability to edit ticket and report formats
- Access to any data based on given criteria
- Printer connection
- Label and report printing
- Legal metrology approval
- CE certificate
Options;
Automatic vehicle recognition system
Camera System
Ex Proof scale
External modem output
Remote display
Traffic lights
Models;
| Model | Nominal capacity (ton) | Minimum capacity (kg) | Sections e=d* (kg) | Platform size (m) | Platform | Loadcell number | Loadcell model | J-Box | Indicator |
| 100T-CB-0316 | 100 | 1000 | 50 | 3x16 | Concrete | 4 | HSC | J-4 | PWIT |
| 100T-CB-0318 | 100 | 1000 | 50 | 3x18 | Concrete | 4 | HSC | J-4 | PWIT |
| 100T-CB-0316 | 100 | 1000 | 50 | 3x16 | Concrete | 6 | HSC | J-6 | PWIT |
| 100T-CB-0318 | 100 | 1000 | 50 | 3x18 | Concrete | 6 | HSC | J-6 | PWIT |
Specifications;
| **Loadcell | |
| Model | HSC |
| Protection Class | IP68 |
| Mounting Kits | HSC-EL |
| Fixed operating temperature interval | -10°C ... +40°C |
| Operating temperature interval | -40°C ... +80°C |
| ***Indicator | |
| Model | PWI-T |
| Protection Class | IP54 |
| Feeding tension and strentgh | 90-265VAC 60W |
| Operating temperature interval | -10°C ... +40°C |
| J-Box connection box | |
| Protection class | IP66 |
| Material | Alüminyum |
| Enviroment | |
| Fixed operating temperature interval | -10°C ... +40°C |
| Operating temperature interval | -40°C ... +80°C |
| Feeding tension and strength |
