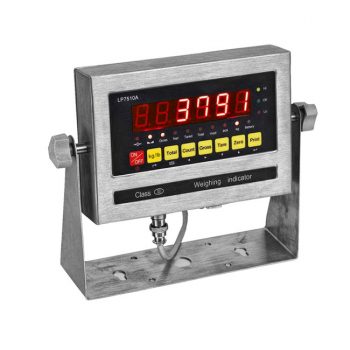

LP7510 Weighing Indicator with Bluetooth

The LP7510 is a stainless steel (or mild steel) weighing indicator with a 1-inch LED or LCD display with backlight, here with Bluetooth for sending weights wirelessly to a phone, tablet or computer. It is NTEP approved for 5,000 divisions (certificate of conformance 09-070A1), accuracy class 6,000e / 30,000D, and drives up to eight 350 Ω load cells.

Standard functions include counting, auto hold, check weighing with upper and lower limit alarms, kg/lb switching, a full-duplex RS232 port, automatic power-off and gravity adjustment for your location. It runs on mains power or a built-in 6 V 4 Ah rechargeable battery, and comes with a mounting bracket.

0.00 KSh 0.00 KSh (Tax excluded)




Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days




Specifications

SpecificationValue
EnclosureStainless steel or mild steel
Display1-inch LED or LCD with backlight; up to 50,000 graduations
Accuracy class6,000e / 30,000D; NTEP approved for 5,000 divisions
ADC resolution2,000,000
Internal sensitivity0.12 µV/count
Conversion time50 ms
Zero stability errorTK0 < 0.1 µV/K
Span stability errorTKspn < ±6 ppm/K
Load cellsUp to 8 × 350 Ω; 5 V DC excitation, 4-wire, min. 50 Ω
InterfacesBluetooth; full-duplex RS232
FunctionsCount, auto hold, check weighing, upper/lower limit alarm, kg/lb, auto power-off, date and time
PowerAC 100–250 V adapter; DC 6 V 4 Ah rechargeable battery
Operating temperature−10 to +40 °C
Storage temperature−40 to +70 °C
Dimensions7.87 × 2.95 × 7.17 in (L × W × H)
IncludesIndicator, AC adapter, instrument cable, RS232 adapter, housing and mounting hardware

Other versions: LP7510 with RS232 and LP7510 with receipt printer.

Installation and calibration

After the indicator is fitted, the scale must be calibrated, and a trade scale verified and stamped. Our technicians install indicators and calibrate scales on site through our calibration and repair services. Request a quote.

Frequently asked questions

Up to eight 350 Ω load cells.

A phone, tablet or computer with a compatible app or software, to receive weight readings wirelessly.

Yes. It has a built-in 6 V 4 Ah rechargeable battery as well as an AC adapter.

Yes. We fit the indicator, calibrate the scale and support it across Kenya.
