UNIQUE FUNCTIONS
- Exclusive ultra-high resolution, the BR1X is capable of scanning 2mil ultra-tiny barcode with high density (3 mil or above for other manufacturers).

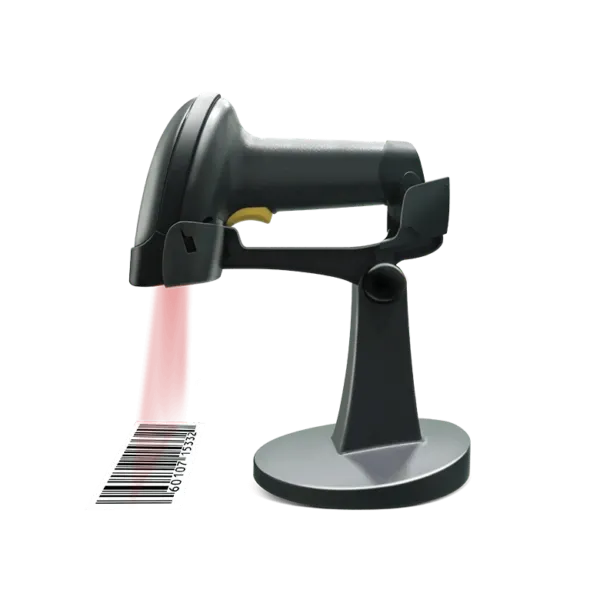

- Exclusive design of one scanner with three operation patterns and stereoscopic scanner stand (charging stand) with multi-functions. The BR1X supports to scan documents on the counter at 90°, items with barcode at 45°and payment code on mobile phone manually and wirelessly.
- Equipped with pre-lighting function (when handheld or vibratory trigger hits the scanner), it can easily aim among close barcodes.
- Wireless 2.4G model (BR1WX) of super power-saving design is able to scan up to 13,000 times when it’s fully charged. Standby current only comes to 6μA, the BR1X can standby for one year.
- 2.4G and Bluetooth dual module integrated scanner.
- Optional communication modes: 2.4G,Bluetooth and wired mode（just change communication board to switch the communication mode.
- 2.4G frequency selection technology, several scanners can be used at close range at the same time without interfere with each other and super power-saving.
EXCELLENT FUNCTIONS
- BR1XL model 433MHz, supports connectivity up to 300m wirelessly, conducive to warehouse and supplier.
- Waterproof and dustproof design, an IP54 rating assures operation reliability under bad condition.
- Drop durability design, designed to withstand 1.5m drops to concrete.
- Special wire rod for wired scanner (BR1NX), it carries lighter weight (half diameter) and better durability (half tensile force) of the same kind, also superior in flexibility and tension.
- Optional system interfaces: USB port, PS2 and RS-232 D9.
- Equipped with wall-handing function, the BR1 can save desktop space.
Specifications
| OPERATIONAL | ||
| Model | BR1LX | BR1X |
| Light Source | 650nm laser | 2500 pixel linear transducer |
| Operation Pattern | Handheld or stand type (on charging stand) | |
| Scan Pattern | Handheld or auto scan on charging stand | |
| Scan Precision | 0.10mm (4 mil) | 0.05mm (2 mil) |
| Scan Width | 118mm (at 50mm);245mm (at 130mm) | 117mm (at 20mm);305mm (at 200mm) |
| Error Rate | Millionth | |
| Transmission Rate | RS-232 baudrate:2400-38400 | |
| Decoding Capability | Code39, Code32, CIP39, Coda Bar(CLSI), EAN-13, UPC-A, EAN-8, UPC-E(Add on 2 of 5), MSI/Plessey(UK Plessey), Code 128(EAN128),Code 93, Code 11, Interleaved 2 of 5, ITF 14, Industrial 2 of 5, IATA, Matrix 2 of 5, Telepen, China Postal Code, GS1 DataBar(RSS), Laetus Phamacode | |
| PHYSICAL | ||
| Material | ABS+TPR | |
| Color | Gray/Black/White | |
| Dimension | 112mm (Length) *75mm (Width)*200m (Height) | |
| Indicator | LED &Beeper | |
| System Interface | USB/RS232/PS2 | |
| POWER | ||
| Operating Voltage | 5V±5% | |
| Operating Current | 120mA | 112mA |
| ENVIRONMENTAL | ||
| Drop Durability | Withstand 20 drops at 1.5m to concrete | |
| Working Temperature | 0℃~40℃ (Customization available for harsher environment) | |
| Store Temperature | -10℃~40℃ | -20℃~60℃ |
| Relative Humidity | 5%~95% (Non-condensing) | |
| REGULATORY | ||
| Safety | National Secondary Safety Standard | No Safety Concern |
