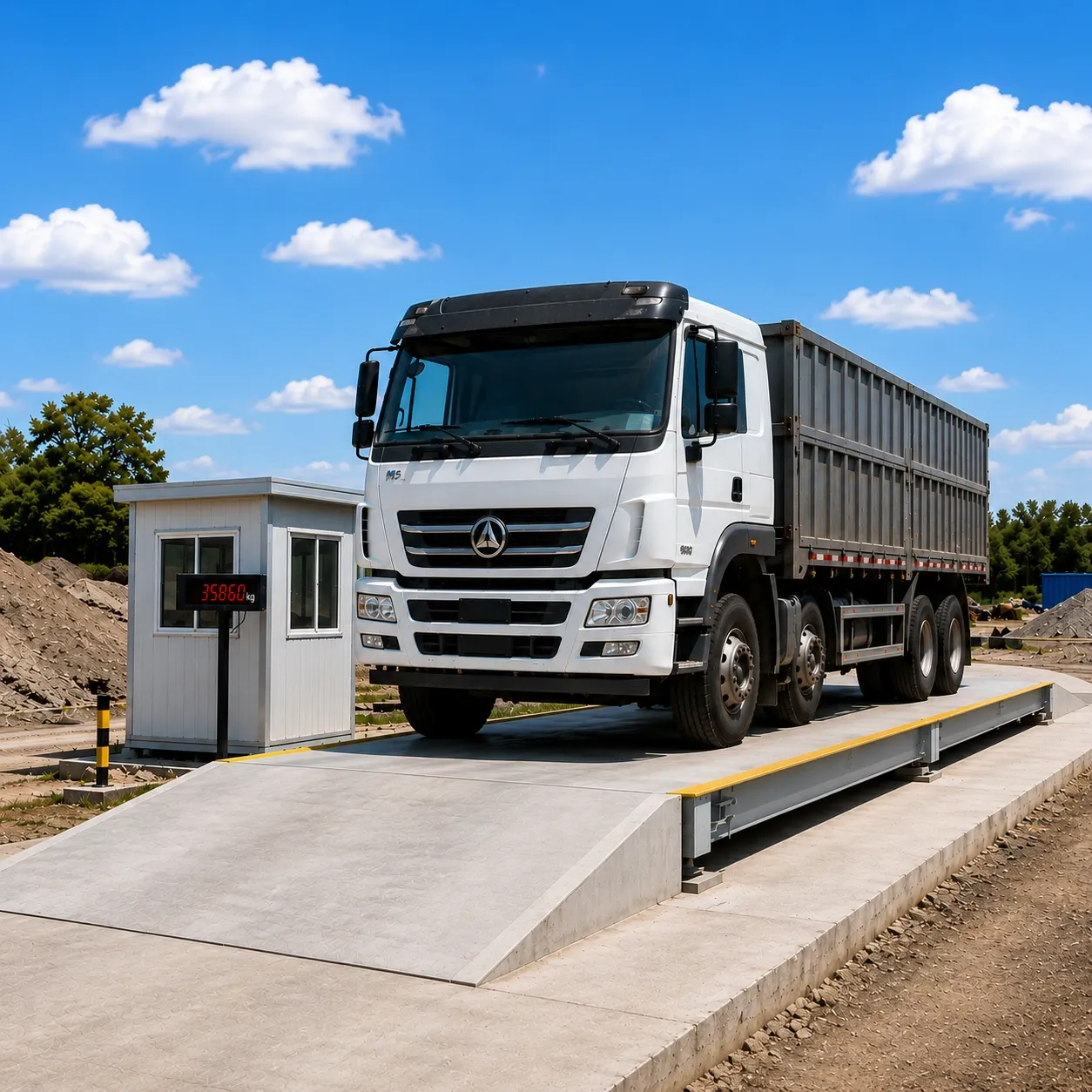

![[1487] Standard Weighbridge with 3 Sections of 6m x3m - 60-80 ton.webp](/web/image/product.image/489/image_1024/%5B1487%5D%20Standard%20Weighbridge%20with%203%20Sections%20of%206m%20x3m%20-%2060-80%20ton.webp?unique=6356116)
![[1487] Standard Weighbridge with 3 Sections of 6m x3m - 60-80 ton.webp](/web/image/product.image/489/image_128/%5B1487%5D%20Standard%20Weighbridge%20with%203%20Sections%20of%206m%20x3m%20-%2060-80%20ton.webp?unique=6356116)
Specification | Details |
|---|---|
Model / Series | Compact / Standard-Heavy Duty / Extended Heavy Duty |
Capacity (Compact) | 40 T |
Capacity (Standard/Heavy Duty) | 60 T or 80 T |
Capacity (Extended Heavy Duty) | 100 T |
Platform Size (Compact) | 12 m x 3 m |
Platform Size (Standard/Heavy Duty) | 18 m x 3 m |
Platform Size (Extended Heavy Duty) | 22 m x 3 m |
Load Cells (Compact) | 6 pcs |
Load Cells (Standard/Heavy Duty) | 8 pcs |
Load Cells (Extended Heavy Duty) | 10 pcs |
Load Cell Model | ZEMIC/KELI |
Load Cell Capacity (each) | 30 Tonnes |
Load Cell Accuracy Class | C3 |
Load Cell Safe Overload | 150% F.S |
Load Cell Ultimate Overload | 300% F.S |
Load Cell Protection Class | IP68 (hermetically sealed) |
Load Cell Material | Alloy steel |
Load Cell Working Temperature | -35°C to +70°C |
Platform Structure | Standard U-shape beam, 300 mm height, 6 pcs U-beam |
Platform Steel Grade | Q235B carbon steel |
Platform Top Plate | 8 mm checker plate |
Painting | Acrylic Polyurethane, anti-rust/anti-corrosion, shot blasted (steel shot), airless spray, automatic painting line, Carpoly paint |
Shot Blasting Standard | SA2.5 |
Installation Options | Under the ground (pit-mounted) or above the ground (surface-mounted) |
Weight Indicator Model | KELI D2008H |
Indicator Operating Temperature | 0°C to 40°C |
Indicator Relative Humidity | ≤85% RH |
Indicator Power Supply | 220V, 50Hz |
Indicator Transmission Mode | RS485 (digital load cell) |
Indicator Baud Rate | 9600 / 19200 |
Indicator Data Storage | 1000 group weighing records |
Indicator Display | 7-bit, 0.8-inch LED digital tube |
Indicator Functions | Record storage/check/delete, power-off protection, sound alert on overweight |
Printer Model | LX350+ |
Printer Form Capacity | 5-part forms (1 original + 4 copies) |
Printer Paper Paths | Top, bottom and rear (easy access) |
Junction Box | Stainless steel, 8 ways, resistance protection device, waterproof seal joints |
Management Software | SPWin Weighbridge Management Software |
Software Core Functions | Gross/tare/net capture, transaction history, ticket printing, flexible reports, operator/user controls, standalone operation, data export |
Software Automation Options | RFID/card/QR/barcode ID, vehicle photo/CCTV, traffic light & boom-barrier control, driver self-service kiosk, remote display/message panel, network/multi-terminal operation, web service/ERP/SAP integration |
Automation Hardware (diagram) | Security camera, entry/exit cameras, message panel, HGS reader, optical barriers, boom barriers, barcode reader, load cells and mounting kits, control room |
Certifications / Standards Stated | Not specified in the datasheet (only internal references: load cell accuracy class C3; shot-blasting standard SA2.5) |
2.1 Physical Construction — Platform
2.2 Weighbridge Load Cells
2.3 Weighbridge Weight Indicator
2.4 Weighbridge Automation Options
Any of the three platform sizes can be supplied as a conventional operator-controlled weighbridge, or expanded into a semi-automated or fully unattended system, using the following documented options:
Boom barriers and red/green traffic lights for controlled vehicle movement
RFID cards/tags, QR codes, barcodes or card readers for automatic vehicle/order identification
Driver self-service kiosk for unmanned or semi-unmanned weighing
CCTV and vehicle photo capture for transaction evidence and security
Remote weight display and message panel for driver guidance
ERP/SAP/API integration for automatic exchange of order, vehicle, material and weighing data
Frequently Asked Questions
How much does a weighbridge cost in Kenya?
Pricing depends on the capacity, platform length, mounting type, and level of automation. Contact Scalestech for an accurate quotation.
What size weighbridge do I need for my trucks?
Match the platform to your heaviest fully-loaded vehicle: 40T for rigid trucks and smaller fleets, 60/80T for standard articulated trucks, and 100T for the largest combination vehicles used in mining and cross-border haulage.
Is a Scalestech weighbridge legal for trade in Kenya?
Yes — once installed, the weighbridge is verified and calibrated in line with the Weights and Measures Act (Cap. 513) so its readings can be used for billing and compliance purposes.
What is the difference between a pit-mounted and surface-mounted weighbridge?
A pit-mounted weighbridge sits flush with the yard, needing more civil works; a surface-mounted weighbridge sits on the surface with access ramps, costing less to install but taking up more yard footprint.
Can the weighbridge run without an operator?
Yes — with added boom barriers, RFID/QR identification, and a driver self-service kiosk, any of the three sizes can run as a semi-automated or fully unattended weighbridge.
What load cells and indicator does this weighbridge use?
ZEMIC or KELI 30-tonne, C3-accuracy, IP68-rated load cells paired with a KELI D2008H digital weight indicator and SPWin management software.
Do you install weighbridges outside Kenya?
Yes — Scalestech installs and supports weighbridges across East Africa, including Uganda, Tanzania, Rwanda, Zambia, and Sudan.
How long does weighbridge installation take?
Timeline depends on mounting type and site readiness; pit-mounted installations take longer due to civil works, while surface-mounted units can be commissioned faster once the platform arrives on site.
Does the weighbridge integrate with our existing ERP or SAP system?
Timeline depends on mounting type and site readiness; pit-mounted installations take longer due to civil works, while surface-mounted units can be commissioned faster once the platform arrives on site.
How often does a weighbridge need to be recalibrated?
Calibration frequency should follow Kenya's Weights and Measures requirements and site usage intensity; Scalestech offers annual maintenance contracts to keep units within their certified tolerance.
