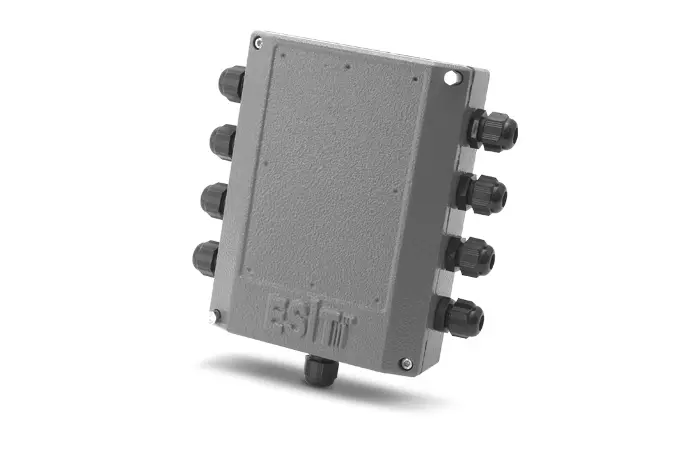

ESIT J-Type Junction Box, 8-Way

Overview;

Esit J-type connection boxes gather the electrical signals from the load cells and transmit them to the indicators. With the trimpots in the J-Box, the load cell signals can easily be equalized.



0.00 KSh 0.00 KSh (Tax excluded)




Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days




Models;

ModelExplanation
J11 PCS LOAD CELL INPUT - 1 PCS OUTPUT
J22 PCS LOAD CELL INPUT - 1 PCS OUTPUT
J33 PCS LOAD CELL INPUT - 1 PCS OUTPUT
J44 PCS LOAD CELL INPUT - 1 PCS OUTPUT
J55 PCS LOAD CELL INPUT - 1 PCS OUTPUT
J66 PCS LOAD CELL INPUT - 1 PCS OUTPUT
J88 PCS LOAD CELL INPUT - 1 PCS OUTPUT
J1010 PCS LOAD CELL INPUT - 1 PCS OUTPUT

Specifications;

Enviroment
Operating temperature-40°C+80°C
Storage temperature-40°C+80°C
Required power supply-
Box
Material and Protection ClassImpact durable, aluminium injection, IP66
Weight0.9 kg
Package Weigh and Size1 kg

Installing a junction box

Use at least one input per load cell, seal the cable glands well (moisture is a common cause of drifting readings) and corner-adjust the scale after installation. Browse all junction boxes, load cells and weighing indicators. We install and corner-adjust scales through our calibration services. Request a quote.

Frequently asked questions

Up to 8.

Moisture or loose connections inside the junction box are common causes. Check the seals and cable glands, or ask us to inspect the scale.

Yes. We install them and corner-adjust and calibrate the scale.
