1. Camera System:
During weighing, photos of the vehicle are taken with the camera from front, back and top and stored together with the weighing records that can be reported when requested.
2. Bidirectional Traffic Barrier System (Mechanical Arm)
It is used to regulate the weighing traffic of the vehicle scale as a physical barrier.
3. Bidirectional Optical Barrier System:
Optical barriers can be used to ensure the vehicle is positioned correctly on the platform.
4. Message Panel:
Message panel can be used to organize and accelerate the weighing process by giving informative and guiding messages to the driver, such as «Please enter, Weighing in process, Weight value, Please wait, Weighing completed.» etc.

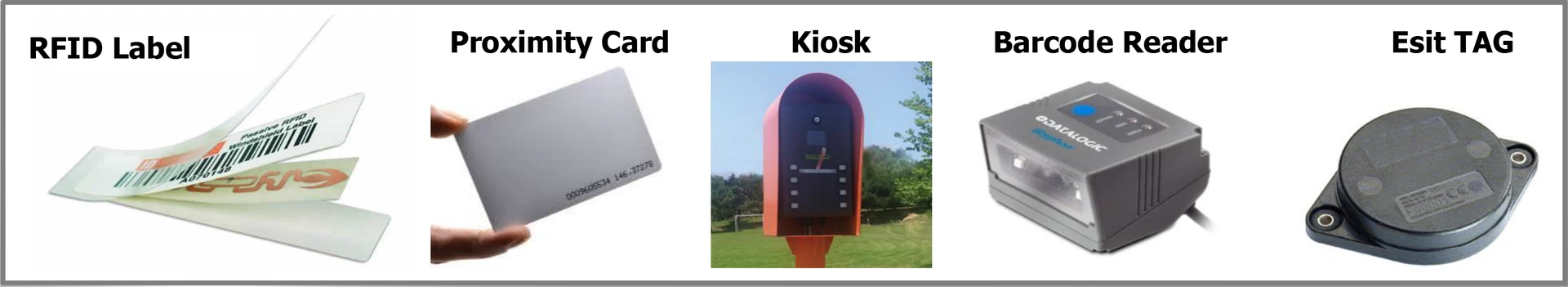

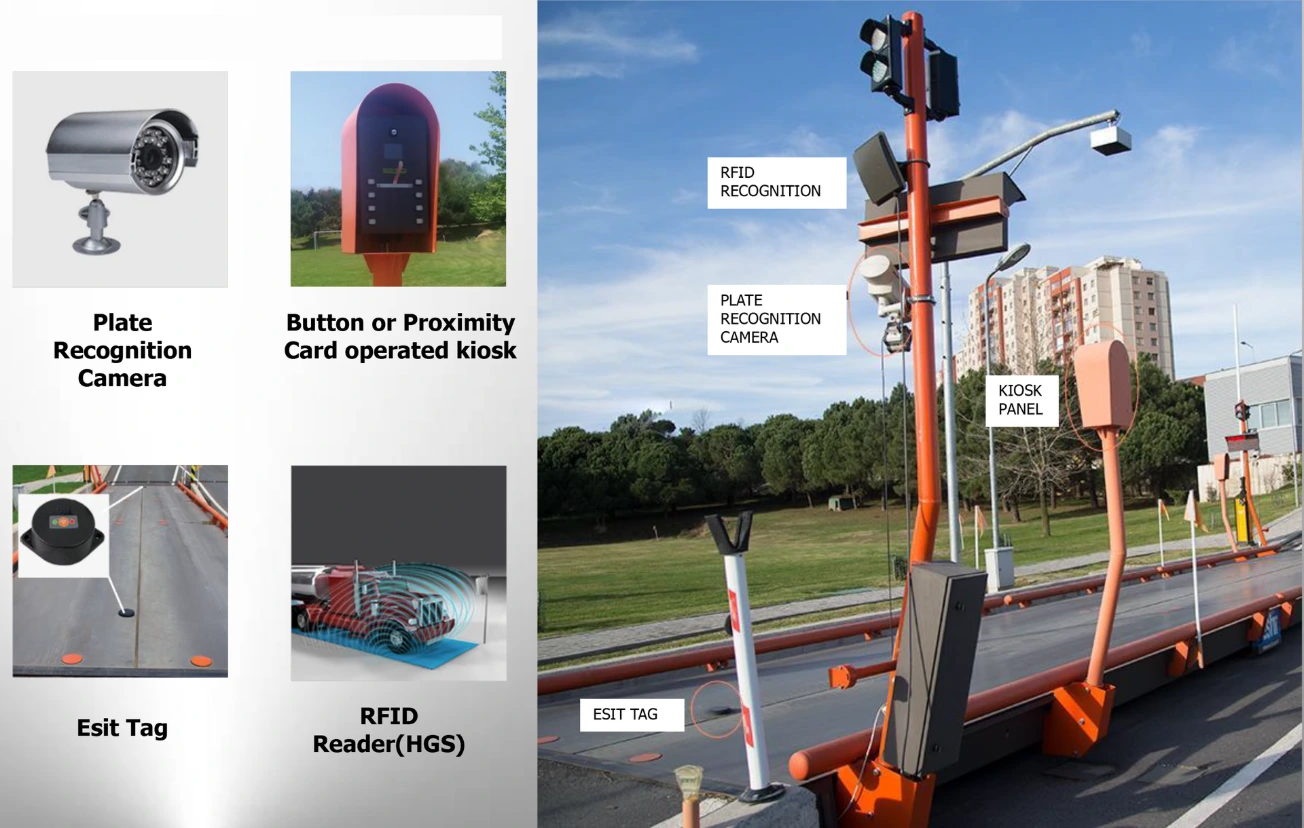

5. Vehicle Recognition System
There are various options for vehicle recognition;- RFID Label (HGS)- Kiosk (Proximity Card or Button Operated)- Barcode Reader- Plate Recognition Camera- Esit Tag
6. Remote Control Screen (TSC)
With the use of a touchscreen all weighing records can be accessed, processed and weighing data can be transferred.
7. Esit SPWinPRO Software
SP WIN PRO is an advanced scale and traffic management software for professional use. The software runs on external PC, providing extended security, recognition of plate, none operator weighing and flexible reporting
8. Local network or remote access :
Reports can be formed from different computers on the local network through the Esit SPWinPRO Software. The data of each truck scales located in different locations (City, country,…) can be saved both in their own databases and in a computer located in the head office
9. Software Integration:
ESIT SPWinPRO software can be integrated with ERP management softwares via web server or SQL database sharing method.
Web Server: The user can retrieve the data in XML format by specifying the date-time range over http.
SQL Data Base: User can import data from tables of SQL data-based SPWINPRO software
ENTRANCE CONFIGURATION
EXIT
CONFIGURATION
ENTRANCE CONFIGURATION
EXIT
CONFIGURATION
