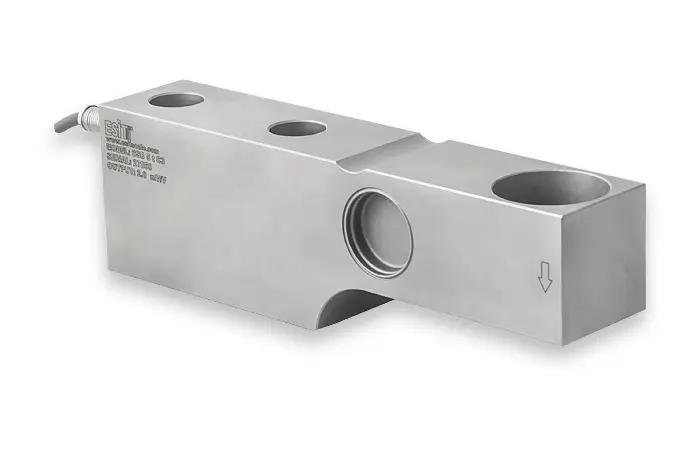

ESIT SSB 5t Shear Beam Load Cell with Mounting Kit
Explanation;
The SSB shear beam load cell has been developed for use in electronic weight and force measurement applications under industrial conditions. The precise and rugged SSB load cell offers high resistance to side forces and overload conditions.
The stainless steel SSB shear beam load cell can be used under the most severe industrial conditions. With a fully welded strain gauge area, SSB is protected to IP68 standards and is resistant to water and other chemicals. The product finds application in medium capacity platform scales, tank weighing systems, automatic weighing equipment and process weighing applications in such industries as construction, food, chemicals, petrochemicals, caustic soda and fertilizers. SSB is also available as steel.
Features;
- Stainless steel
- Easy-to-mount
- Certified to OIML R60 standards
- Resistant to side forces
- Heavy duty
- IP68 industrial protection
Area of Use
- Industrial Scales :
PU Palette Scales Palette Scales 1500-3000 k
- Dosage ControlSystems
- Onboard Weighing Systems
- Truck Scale Systems
Models;
| Model | Capacities | Minumum Division | Maximum Overload Capacity |
| SSB 1000 | 1000 kg | 100 g | 1500 kg |
| SSB 2000 | 2000 kg | 200 g | 3000 kg |
| SSB 5000 | 5000 kg | 500 g | 7500 kg |
| SSB 10000 | 10000 kg | 1000 g | 15000 kg |
Specifications;
| Maximum capacities (Emax) | kg | 1000,2000,5000,10000 | ||
| Accuracy (OIML R60) |
| |||
Maximum number of verification intervals ( ) |
| |||
Minimum verification interval ( ) |
| |||
| Combined error | % | ≤±0.03 ≤±0.02 | ||
| Creep error over 30 min. (DR) | %Emax | 0.006 | ||
| Minimum load | %Emax | 0 | ||
| Maximum safe overload | %Emax | 150 | ||
| Maximum safe sideload | %Emax | 100 | ||
| Ultimate load | %Emax | 300 | ||
| Stretching (Emax) | mm | ≤0.5 | ||
| Maximum excitation voltage (Umax) | V | 15 | ||
| Rated output (Cn) | mV/V | 2 ±0.1% | ||
| Zero balance | %Cn | ≤±1.0 | ||
| Input Resistance | Ω | 385 ±20 | ||
| Output Resistance | Ω | 351 ±3 | ||
| Insulation resistance | MΩ | ≥500 | ||
| Compensated temperature range | °C | -10...+40 | ||
| Operating temperature range | °C | -40...+80 | ||
| Load cell material | Stainless Steel | |||
| Sealing (EN60529) | IP68 | |||
| Cable length | m | 5±%3 | ||
| Cable diameter | mm | 5 | ||
| Weight | kg | 2.1 - 4.2 - 7.56 | ||
| Package dimensions / weight | cm/kg | 11x33x8.5 - 24x41x9 / 2.2 - 4.3 - 8.1 |
