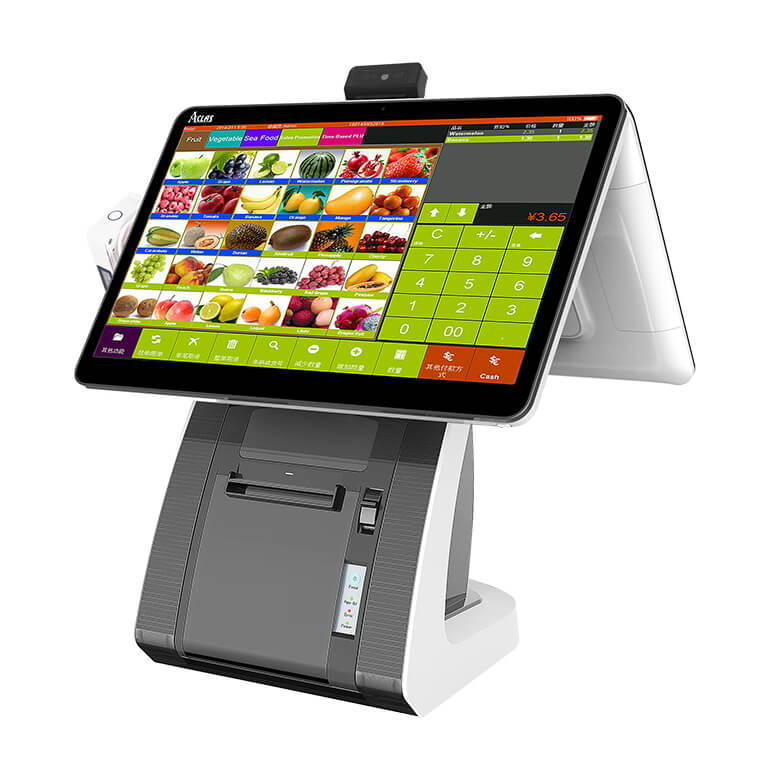

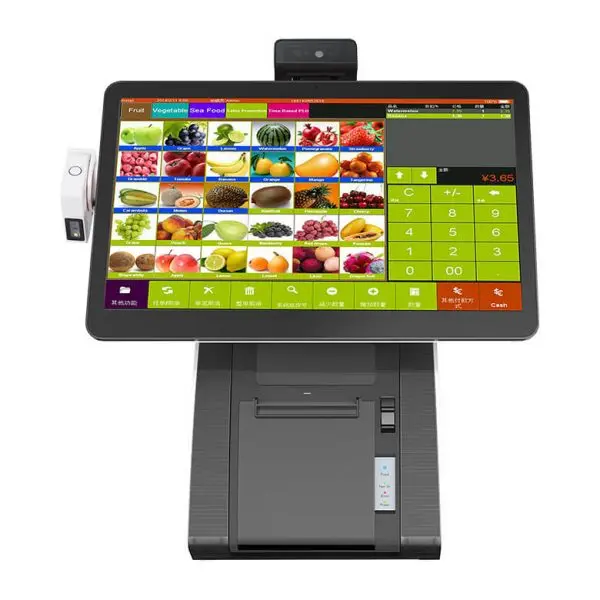

PO6X All-IN-One PC POS
Product Overview:
The PO6X All-in-One PC POS is your next-generation retail POS system — compact, intelligent, and versatile. It combines a 15.6″ capacitive touchscreen, high-speed thermal printer, barcode scanner, and customer display all into one sleek body, making it ideal for supermarkets, salons, boutiques, fast food outlets, and grocery stores.
Built with a pluggable and quick-detachable display, the PO6X POS allows instant servicing or upgrades — within 30 seconds. Its fanless industrial-grade mainboard and Intel CPU ensure silent, energy-efficient, and powerful performance.
Key Features:
Plug in & out Design
Plug in & out design realizes display replacement within 30s; Extremely easy for maintenance and stock management;
Modular Printer Design
Able to quickly change printer module; Easy for maintenance;
All-in-One Design
Real All-in-One Design with inbuilt printer, the compact footprint perfectly fits for stores with limited counter space;
Sufficient I/O Interfaces
Sufficient I/O interfaces: Ethernet, USB, RS232 and Cash Drawer port.
Applications:
- Retail billing & checkout
- Inventory & stock management
- Customer management
- Order printing & kitchen integration (for restaurants)
- Chain store synchronization with HQ database
Documents
All-in-one PC POS Stylish and Versatile, perfect fitting for retail businesses.

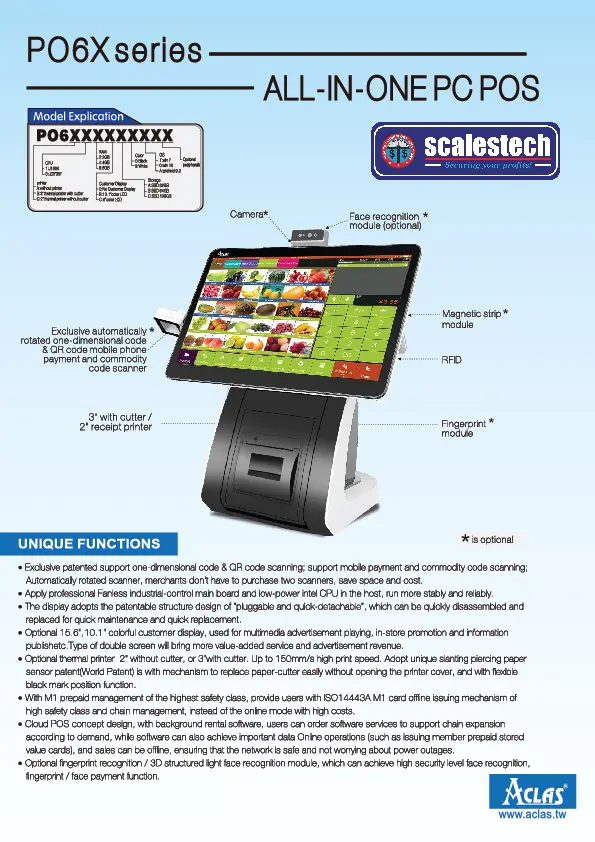

UNIQUE FUNCTIONS
- Exclusive patented support one-dimensional code & QR code scanning; support mobile payment and commodity code scanning; Automatically rotated scanner, merchants don’t have to purchase two scanners, save space and cost.
- Apply professional Fanless industrial-control main board and low-power intel CPU in the host, run more stably and reliably.
- The display adopts the patentable structure design of “pluggable and quick-detachable”, which can be quickly disassembled and replaced for quick maintenance and quick replacement.
- Optional 15.6″,10.1″ colorful customer display, used for multimedia advertisement playing, in-store promotion and information publishetc.Type of double screen will bring more value-added service and advertisement revenue.
- Optional thermal printer 2″ without cutter, or 3″with cutter. Up to 150mm/s high print speed. Adopt unique slanting piercing paper sensor patent(World Patent) is with mechanism to replace paper-cutter easily without opening the printer cover, and with flexible black mark position function.
- With M1 prepaid management of the highest safety class, provide users with ISO14443A M1 card offline issuing mechanism of high safety class and chain management, instead of the online mode with high costs.
- Cloud POS concept design, with background rental software, users can order software services to support chain expansion according to demand, while software can also achieve important data Online operations (such as issuing member prepaid stored value cards), and sales can be offline, ensuring that the network is safe and not worrying about power outages.
- Optional fingerprint recognition / 3D structured light face recognition module, which can achieve high security level face recognition, fingerprint / face payment function.

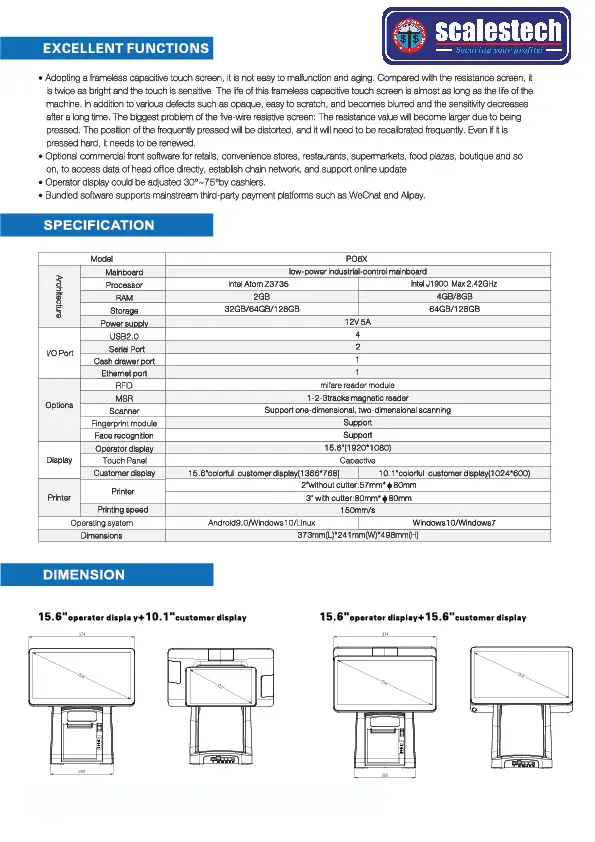

EXCELLENT FUNCTIONS
- Adopting a frameless capacitive touch screen, it is not easy to malfunction and aging. Compared with the resistance screen, it is twice as bright and the touch is sensitive. The life of this frameless capacitive touch screen is almost as long as the life of the machine. In addition to various defects such as opaque, easy to scratch, and becomes blurred and the sensitivity decreases after a long time. The biggest problem of the five-wire resistive screen: The resistance value will become larger due to being pressed. The position of the frequently pressed will be distorted, and it will need to be recalibrated frequently. Even if it is pressed hard, it needs to be renewed.
- Optional commercial front software for retails, convenience stores, restaurants, supermarkets, food plazas, boutique and so on, to access data of head office directly, establish chain network, and support online update
Operator display could be adjusted 30°~75°by cashiers. - Bundled software supports mainstream third-party payment platforms such as WeChat and Alipay.
Specifications
| Model | PO6X | |
| Architecture | Mainboard | low-power industrial-control mainboard |
| Processor | Intel J6412, MAX 2.6GHz | |
| RAM | 4GB/8GB | |
| Storage | 64GB/128GB | |
| Power supply | 12V 5A | |
| I/O Port | USB2.0 | 4 |
| Serial Port | 2 | |
| Cash drawer port | 1 | |
| Ethernet port | 1 | |
| Options | RFID | mifare reader module |
| MSR | 1-2-3tracks magnetic reader | |
| Scanner | Support one-dimensional, two-dimensional scanning | |
| Fingerprint module | Support | |
| Face recognition | Support | |
| Display | Operator display | 15.6″(1920*1080) |
| Touch Panel | Capactive | |
| Customer display | 15.6″colorful customer display(1366*768) | 10.1″colorful customer display(1024*600) |
| Printer | Printer | 2″without cutter:57mm*φ80mm |
| 3″ with cutter:80mm*φ80mm | ||
| Printing speed | 150mm/s | |
| Operating system | Android9.0/Windows10/Linux | Windows10/Windows7 |
| Dimensions | 373mm(L)*241mm(W)*498mm(H) |
