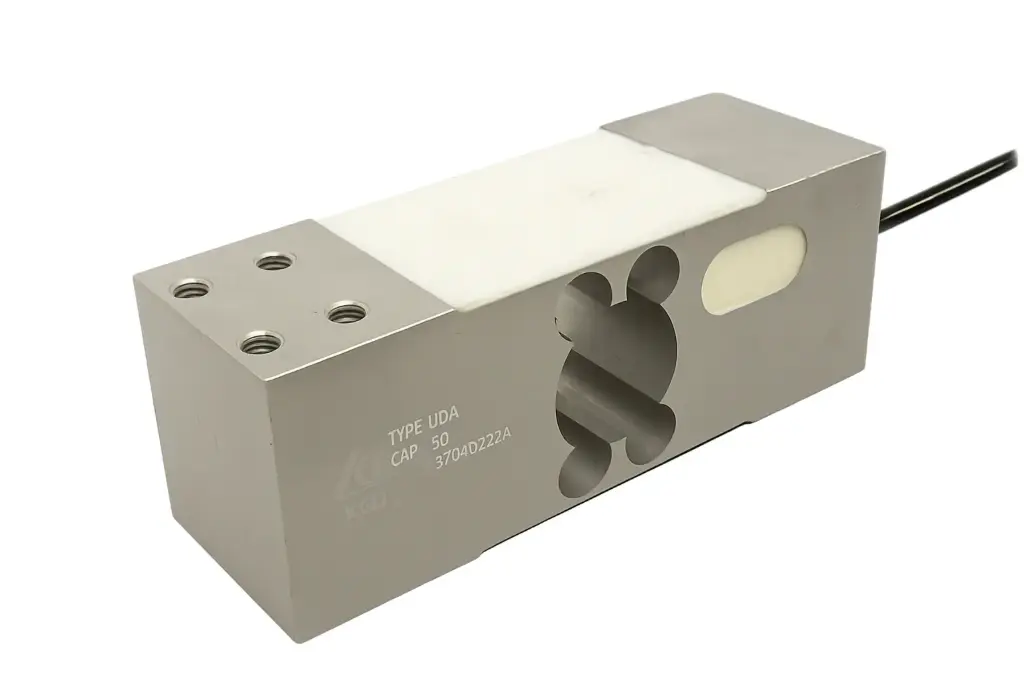

UDA 50KG Keli Single Point Loadcell
FEATURES:
●Capacity: 50kg to 1t
●Compact structure, easy installation
●OIML C3 approval
APPLICATION:
●Big size platform scale
●Variety kinds of press testing device
SPECIFICATION: | |
Rated capacity: 50kg to 1t | Recommended Excitation:10V DC |
Rated output:2.0±0.2mv/v | Maximum Excitation:15V DC |
Combined error: OIML C3 | Environment protection: IP65 |
Zero balance: ±3%Emax | Input impedance: 404±15Ω |
Creep error(30minutes):±166ppm | Output impedance: 350±3Ω |
Temperature effect on zero: ±17.5ppm/℃ | Insulation resistance at 50V DC: ≥2000MΩ |
Temperature effect on output: +20℃~+40℃,±0.0175%F.S/10℃ -10℃~+20℃,±11.67ppm/℃" | Material: Aluminum |
Compensated temperature range: -10℃~+40℃ | cable length: 1.8meter, diameter Φ5mm |
Operating temperature range: -20℃~+50℃ | Max. platform size:600×600mm |
Maximum safe overload:150%Emax | Installation torque, recommended: 25N.m(50kg~300kg),30N.m(500kg~1t) |
