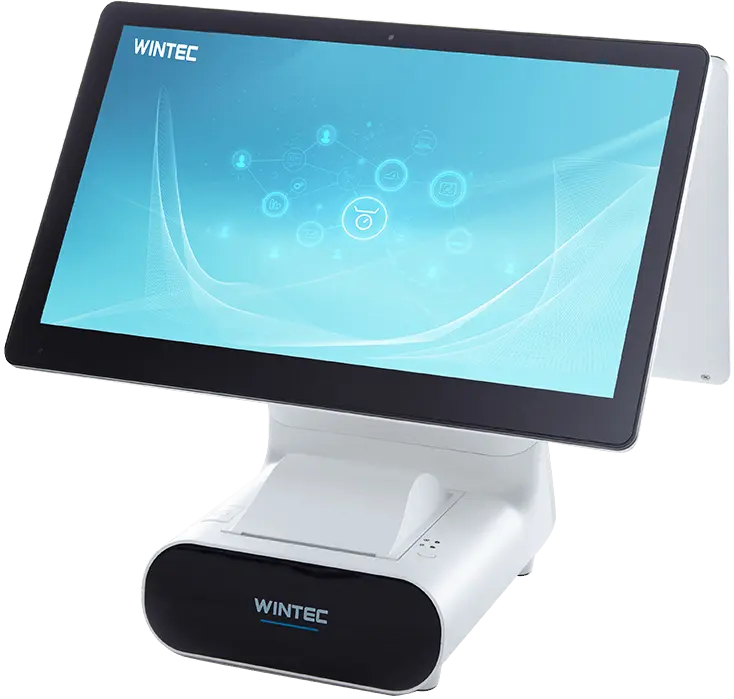

Product Overview

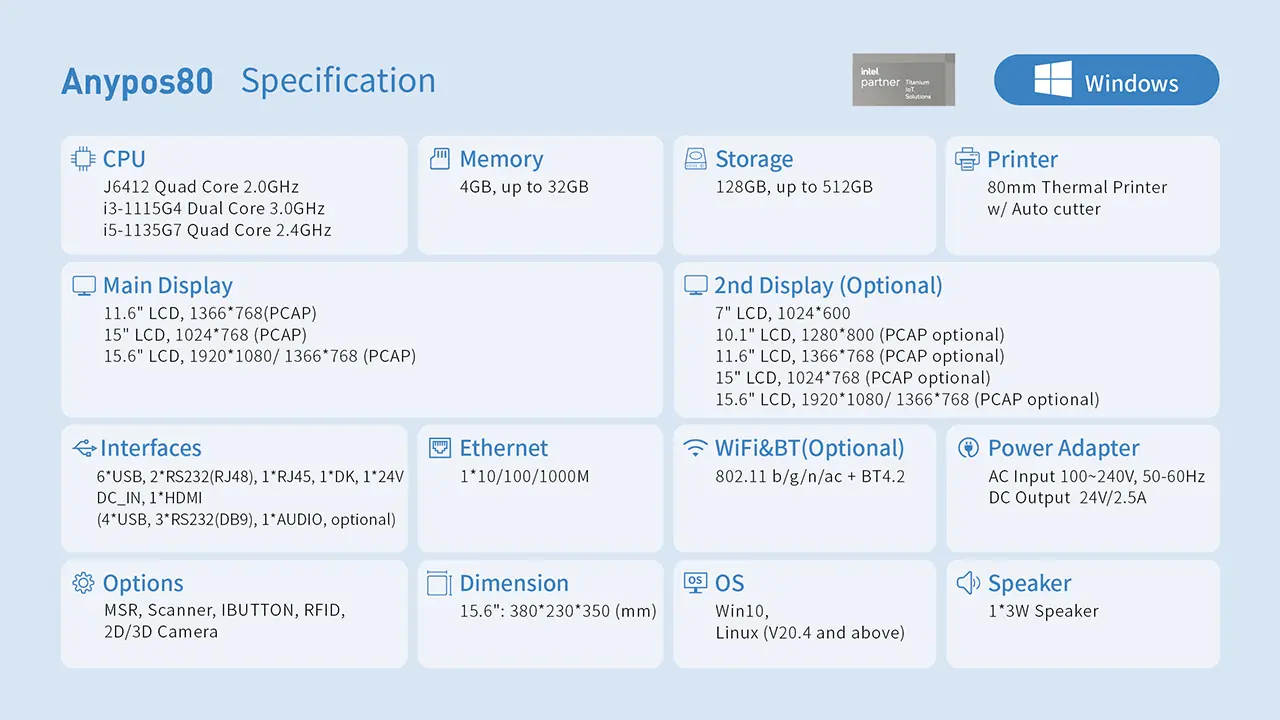

Key Features & Specifications

Display Options

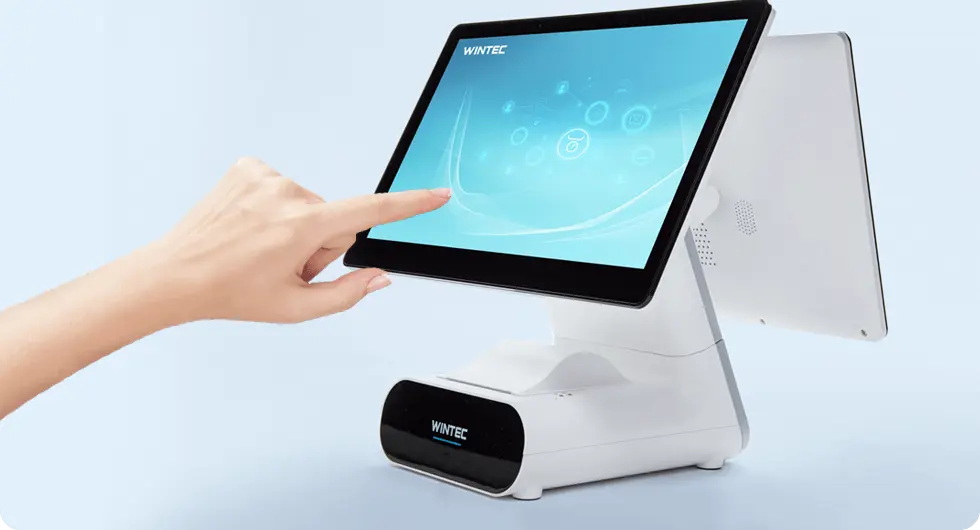

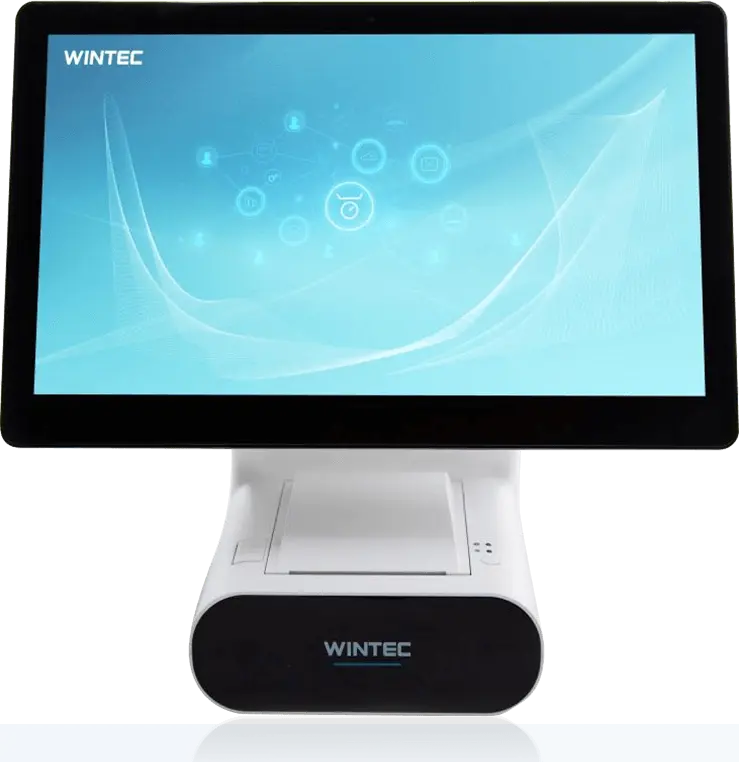

• Main Display: 15.6” Full HD (1920x1080) PCAP multi-touch screen

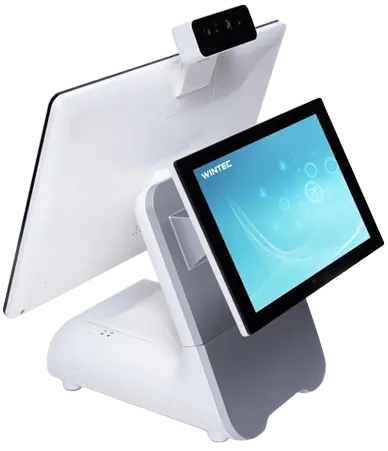

• Secondary Display (Optional):

  • 15.6” FHD (1920x1080)

  • 11.6” HD (1366x768)

  • 7” (1024x600

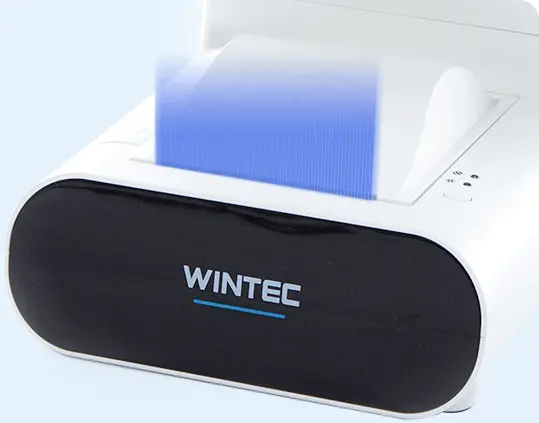

Integrated Thermal Printer

• 80mm thermal printer with auto cutter (optional)

• High-speed printing with long-lasting performance

Performance & Configuration

• CPU Options:

  • Intel® J1900 Quad-Core

  • Optional: Intel® i3 / i5

  • Android Version: RK3288 Quad-Core 1.8GHz

• Memory:

  • 4GB DDRIII (expandable to 8GB)

  • Android: 2GB DDRIII

• Storage:

  • 128GB mSATA SSD (options: 64GB, 256GB)

  • Android: 16GB eMMC

• Operating System:

  • Windows 7/10, Linux

  • Android 7.1

Connectivity & Ports

• I/O Ports:

  • 6× USB, 2× RS232, 1× VGA, 1× Cash Drawer, 1× LAN, 1× 24V DC In (with printer)

  • 5× USB, 2× RS232, 1× VGA, 1× Cash Drawer, 1× LAN, 1× 12V DC In (without printer)

• Networking:

  • Ethernet: 10/100M

  • Wi-Fi: Optional IEEE 802.11b/g/n

  • Bluetooth: Optional BT4.0

Optional Peripherals

• Magnetic Stripe Reader (MSR)

• Ibutton Reader

• AI 2D Camera for facial recognition payments

• 2D Barcode Scanner
