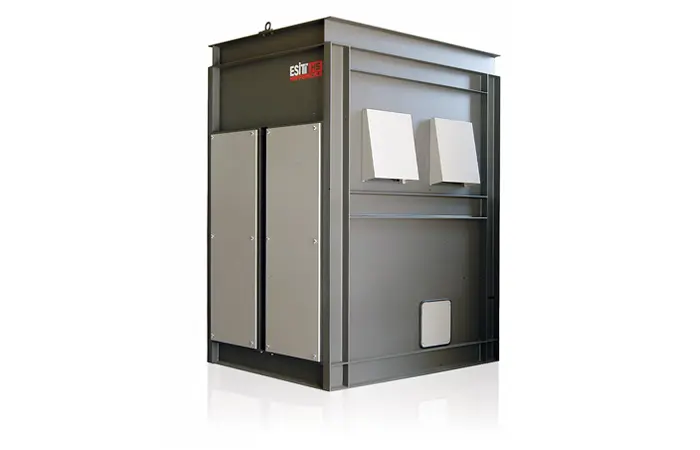

HS Hopper Scale 20-1200 m³/h
The HS Hopper Scale is a high-performance, industrial-grade bulk weighing system designed for fast and precise measurement of materials during transfer operations. Ideal for food processing, mining, chemical industries, and agriculture, this hopper scale supports high throughput – up to 1200 tons per hour – making it the perfect solution for busy production environments.
Whether you're unloading from ships, transferring between silos, or batching materials, the HS Hopper Scale ensures accurate, real-time weight data for improved process control and inventory management.
Explanation;
Hopper scales are used for weighing bulk materials, such as leguminous plants, cereal plants, mine ore, chemicals etc, especially during unloading of a ship or conveying the materials inside a silo or from one silo to another. The process is quite fast that 1200 tons per hour can be reached.
Features;
- RS 232-422-485 Output
- Profibus output
- Modbus output
Options;
- EtherNet / IP Communication Card
- Modbus TCP Communication Card
- Profibus Communication Card (DP slave)
- Profinet IO Communication Card
- RS232 & RS485/RS422 Serial Communication Card (Modbus)
Industries Served:
Food Processing – Reliable weighing of cereals, grains, pulses, and ingredients
Mining & Minerals – Efficient weighing of crushed ore and aggregates
Chemical Industry – Safe handling and batching of raw chemicals
Agriculture & Farming – Inventory management for silos and feed hoppers
| Model | Capacity m3/h | Capacity t/h | Bunker Capacity kg | WidthxLength m | Height m | Section kg |
| HS 50 | 50 | 37.5 | 150 | 1.3x1.1 | 2 | 0.1 |
| HS 100 | 100 | 75 | 300 | 1.3x1.1 | 2.3 | 0.2 |
| HS 200 | 200 | 150 | 800 | 2.1x1.6 | 2.8 | 0.5 |
| HS 300 | 300 | 225 | 1200 | 2.4x2 | 3.2 | 1 |
| HS 400 | 400 | 300 | 1500 | 2.5x2 | 3.5 | 1 |
| HS 600 | 600 | 450 | 2500 | 2.5x2.8 | 3.5 | 2 |
| HS 800 | 800 | 600 | 3500 | 2.5x2.8 | 4 | 2 |
| HS 1000 | 1000 | 750 | 4000 | 3.4x3 | 4 | 2 |
| HS 1200 | 1200 | 900 | 5000 | 3.4x3 | 4.5 | 2 |
Technical Specifications
| Specification | Details |
| Product Name | Fabric GSM Round Sample Cutter |
| Brand | WANT |
| Model | GSM-200 / Fabric Cutter |
| Cutting Area | 100 cm² (Standard) |
| Cutting Diameter | 113 mm |
| Blades | 4 Sharp Stainless Steel Blades |
| Material | Aluminum Alloy Body with Rubber Base Pad |
| Application | Textile, Non-Woven, Paper, Packaging Materials |
| Included Accessories | GSM Cutter, 4 Blades, Rubber Cutting Pad |
| Certification | CE / ISO Certified |
| Origin | China |
| Usage | For cutting circular samples for GSM measurement |
| Operation Mode | Manual Hand-Press |
