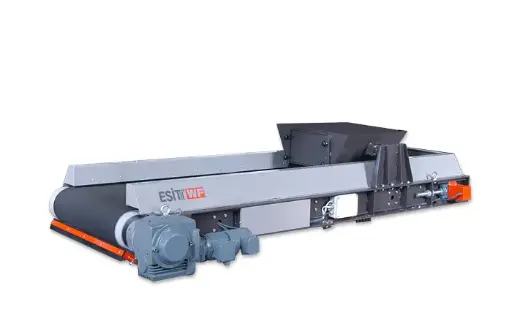

WF Weigh Feeder 100-150-200-300t/h

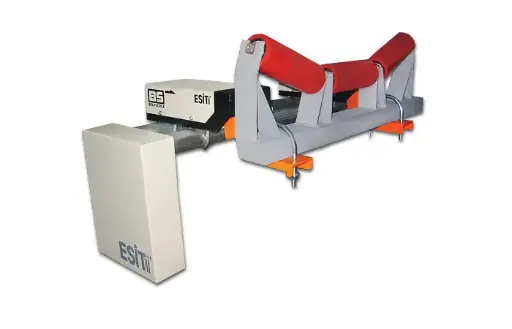

BS Belt Scale 1000-2000-6000 t/h

Belt scales and weigh feeders

A belt scale weighs material as it moves along a conveyor, giving a running total and flow rate without stopping production. A weigh feeder goes further: it adjusts belt speed to feed material at a set rate, for dosing in cement, mining, food and chemical plants.

Model	Type	Capacity	Belt width
ESIT BS 1000 / 2000 / 6000	Belt scale	Up to 1,000, 2,000 or 6,000 t/h	Up to 800, 1,000 or 2,000 mm
ESIT WF-100 / 150 / 200 / 300	Weigh feeder	0.1–9 t/h up to 10–300 t/h	70–125 cm

The BS belt scale has an accuracy of 0.25%, with OIML R50 certification, and suits belt speeds up to 3 m/s and angles up to 18°. Use DLMS-BS software to configure and calibrate it from a PC.

Installation

We survey your conveyor, recommend the model, install and calibrate it with your team. See also hopper scales and bagging scales. Request a quote.

Frequently asked questions

What is the difference between a belt scale and a weigh feeder?

A belt scale weighs material on an existing conveyor. A weigh feeder controls the feed rate to a set target by adjusting belt speed.

How accurate is the ESIT BS belt scale?

0.25%, with OIML R50 certification.

Can a belt scale be fitted to my existing conveyor?

Usually, within the belt width, speed and angle limits. We survey the conveyor first.
